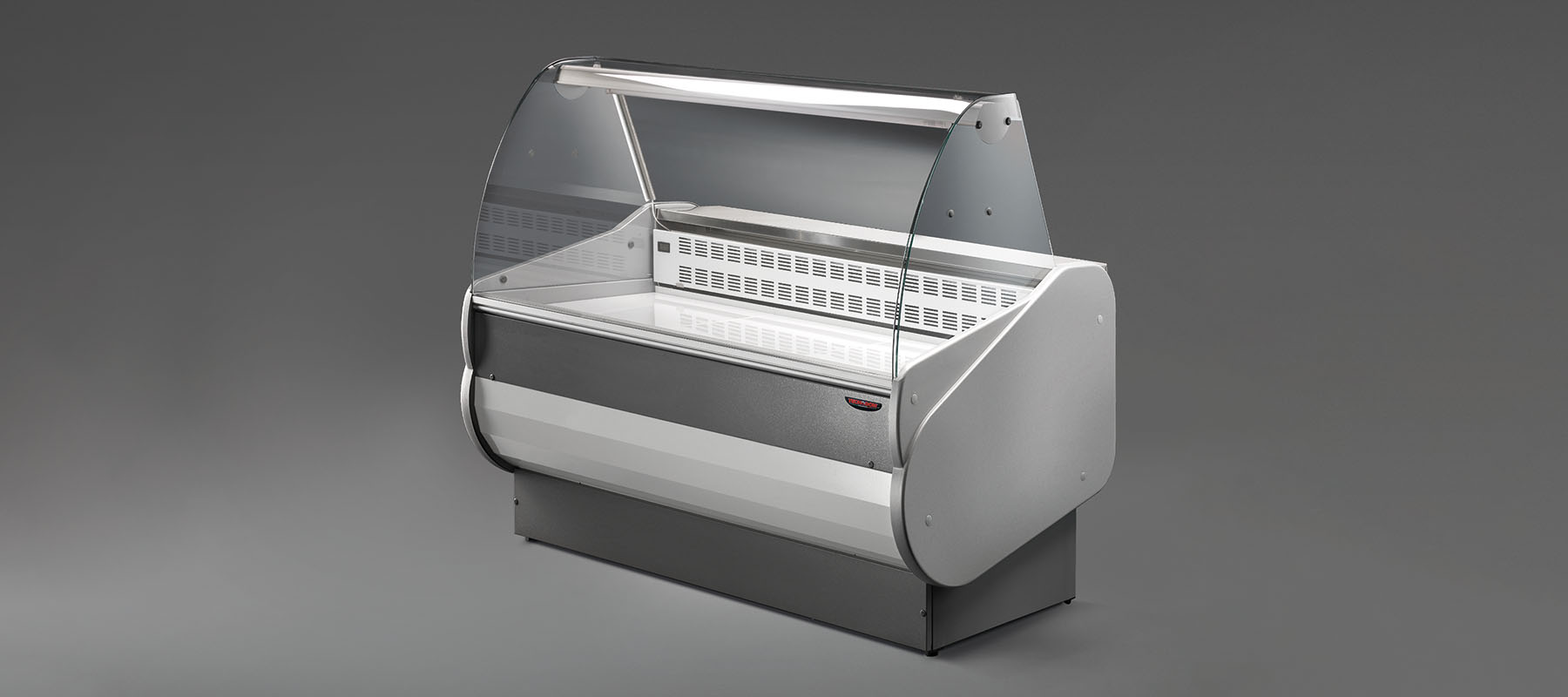

Wide range of configurations with a small footprint.

Available equipments

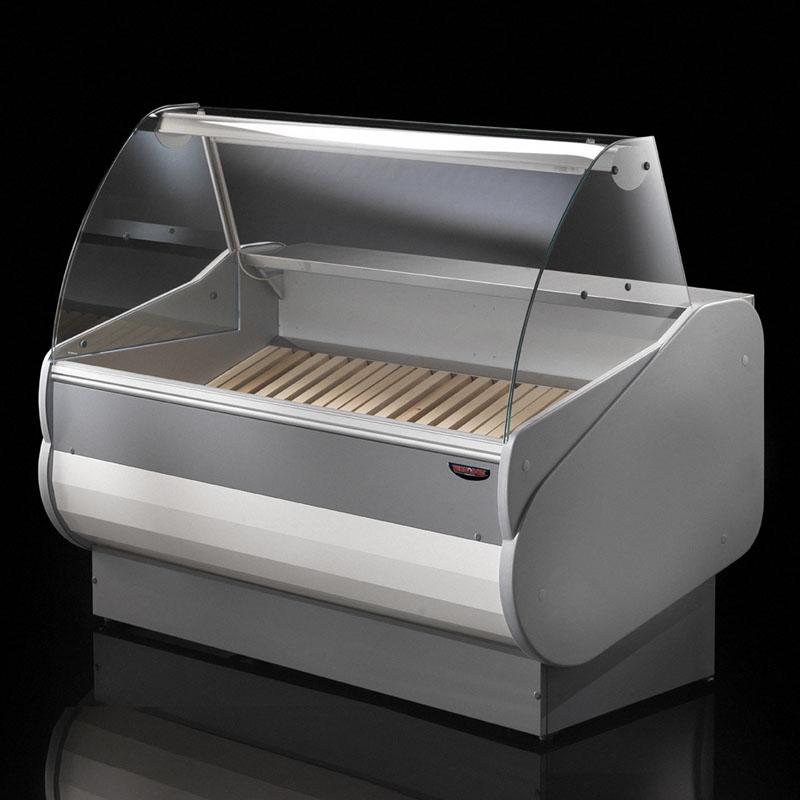

Bread

Hot plate

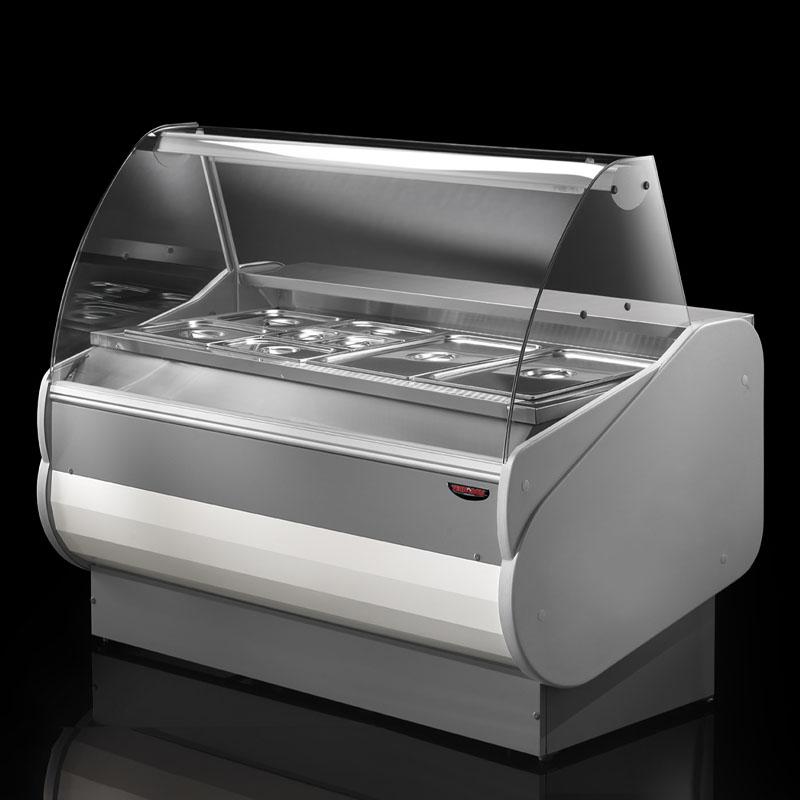

Bain marie

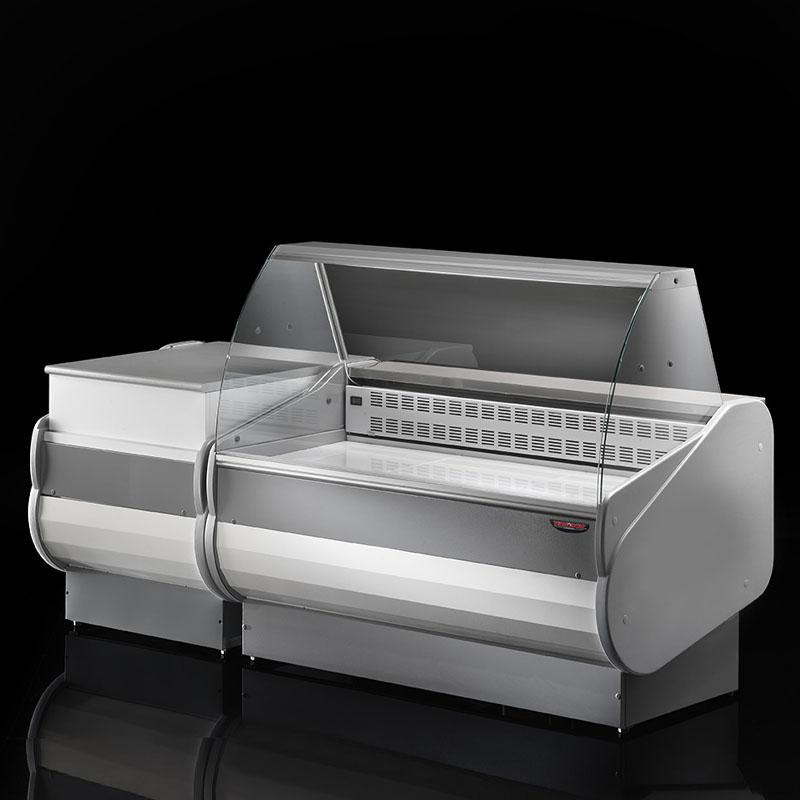

Cash counter

Suitable for

Brioches

Gastronomy

Dairy products

Cured meats

Snack

Optimized space and impeccable productvisibility.

GENERAL FEATURES

  • Technology, design and production “Made in Italy”
  • Reduced dimensions (only 900 mm depth)
  • Ideal for placement in any location
  • Low energy consumption and low enviromental impact
  • White prepainted sheet metal tank (suitable for food contact) with high-pressure injected CFCs-free polyurethane insulation (density 40 Kg / m³)
  • Not multiplexable
  • Easy installation, ready to use

Standard set-up

Thermoformed and insulated side walls (thickness 40 mm each).

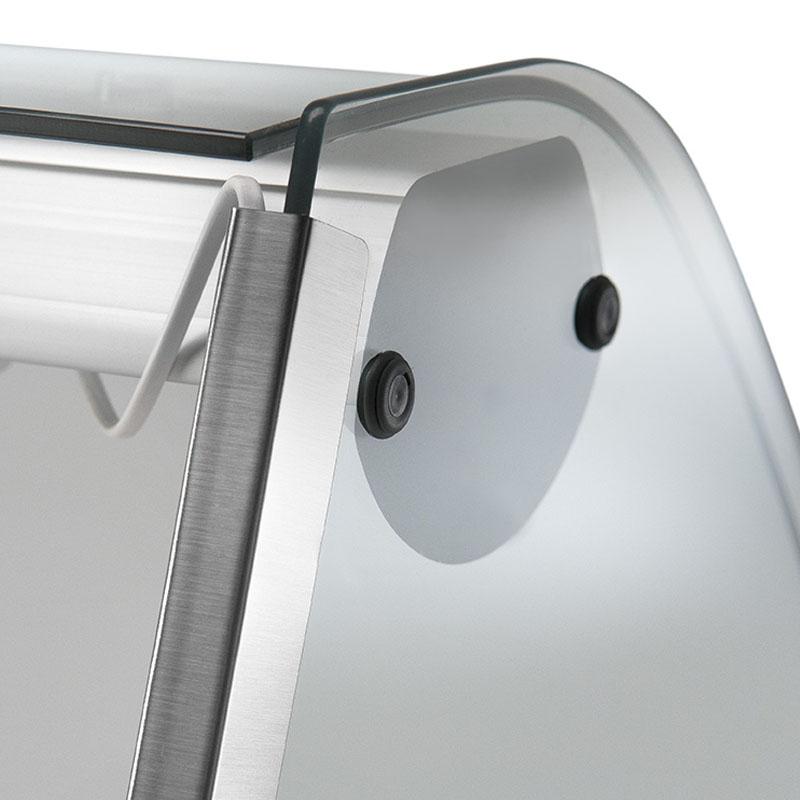

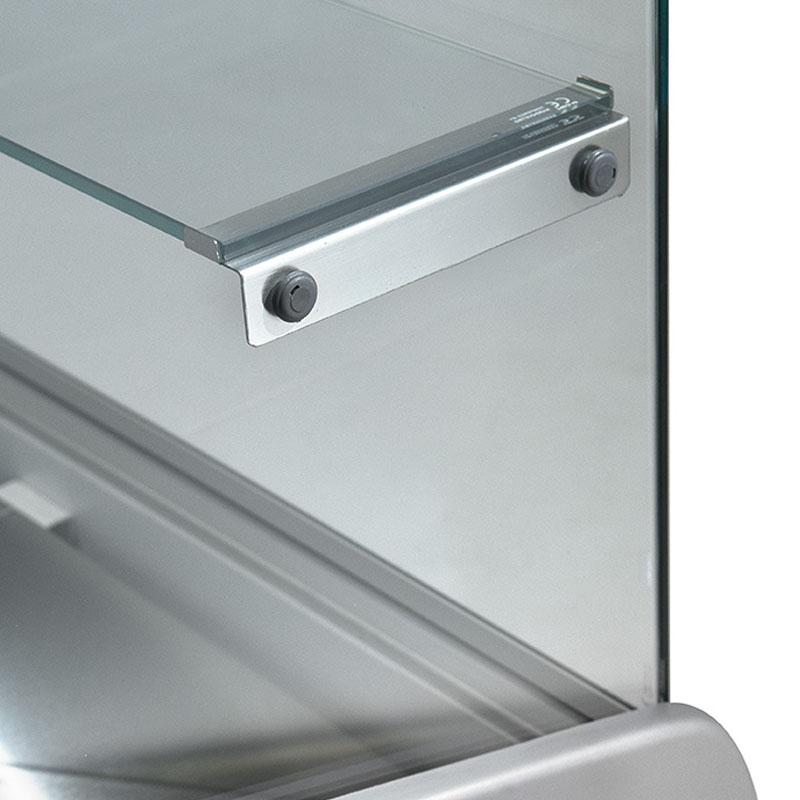

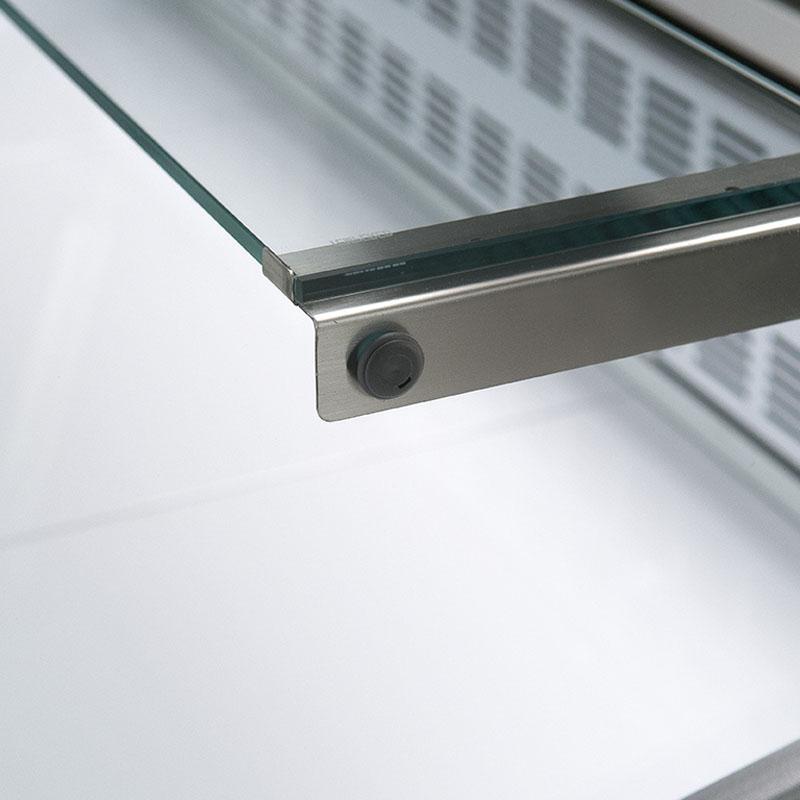

Tempered side glass pre-arranged for intermediate shelf.
Electronic control panel.

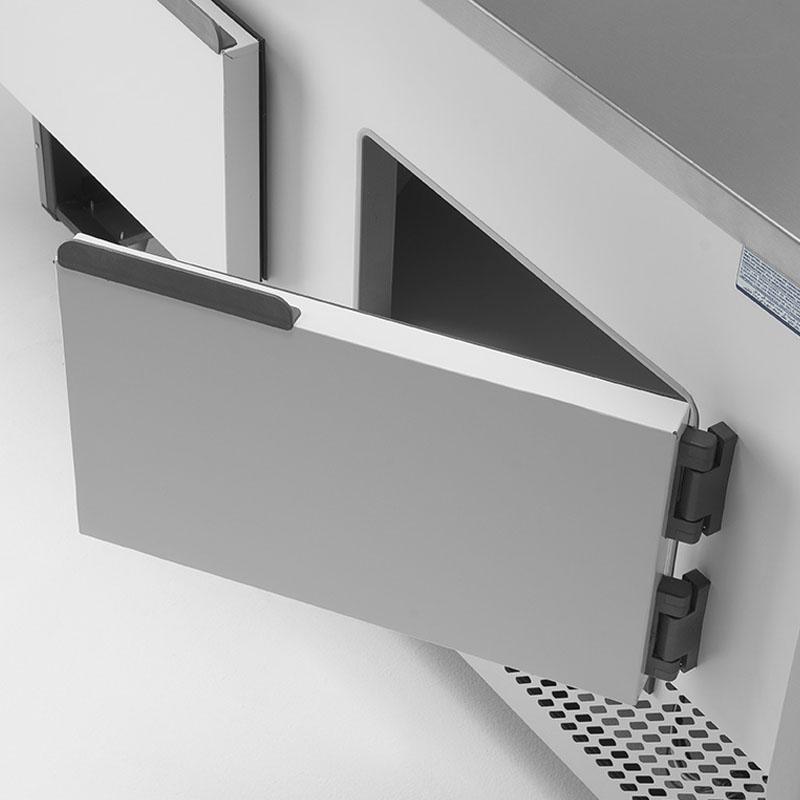

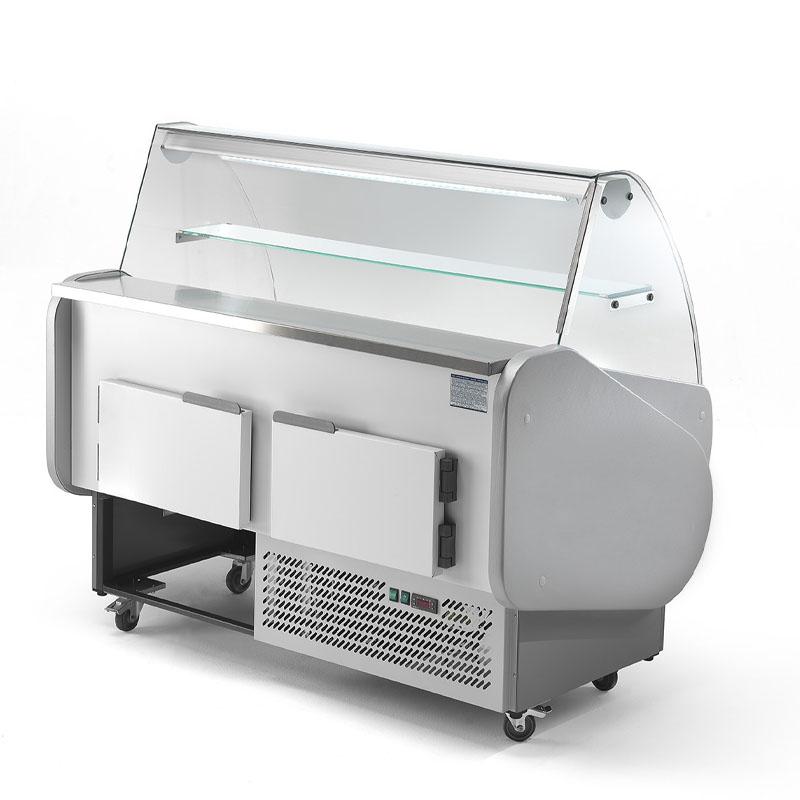

Refrigerated storage with doors.
Led ceiling light.
Stainless steel working top.
Display surface in nontoxic, white painted metal sheet, suitable for food.
Manual, removable condensate evaporation tray.
Anti-fog system with electrical resistance.
Off-cycle defrosting.
Standard packaging: pallet + nylon.



Typology of refrigeration
Semi-ventilated (SV)

Available versions

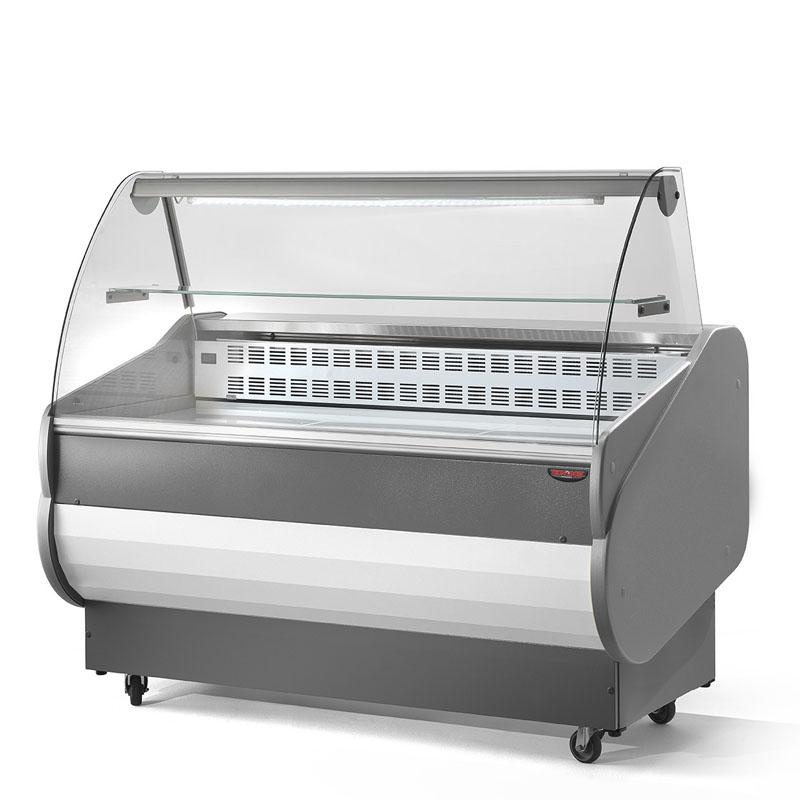

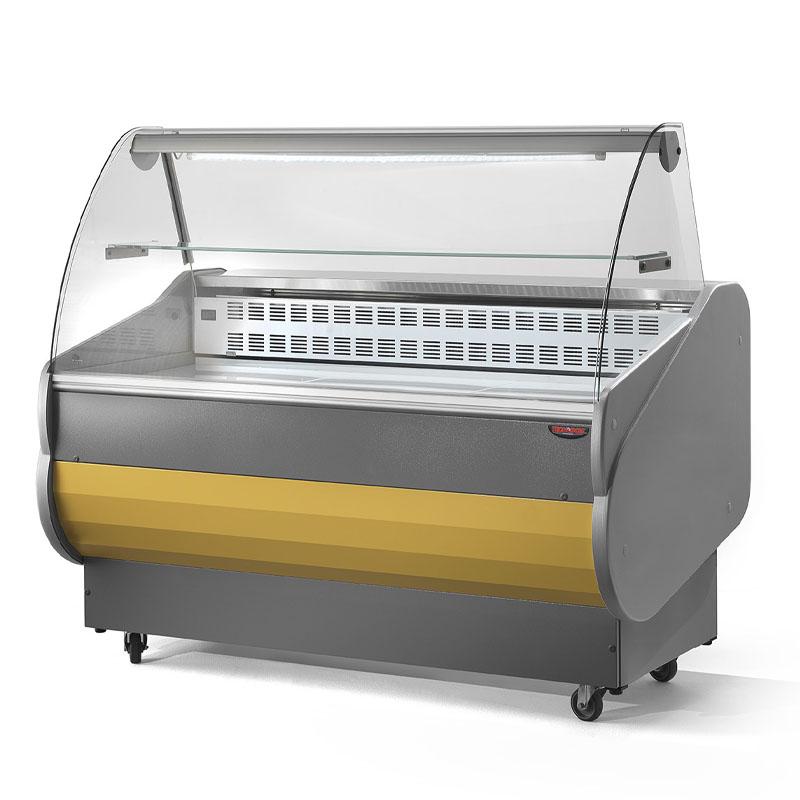

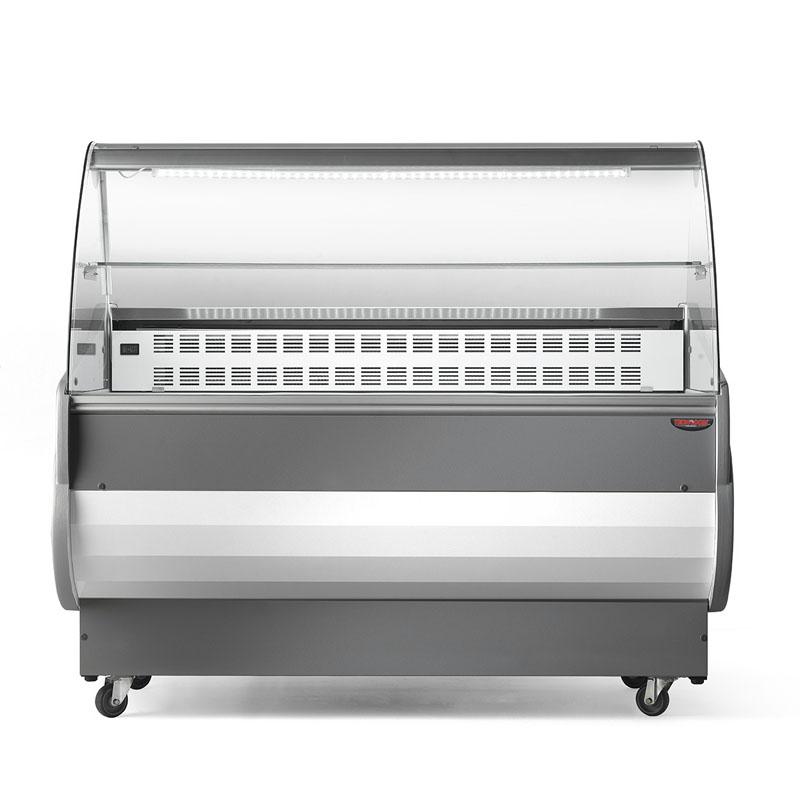

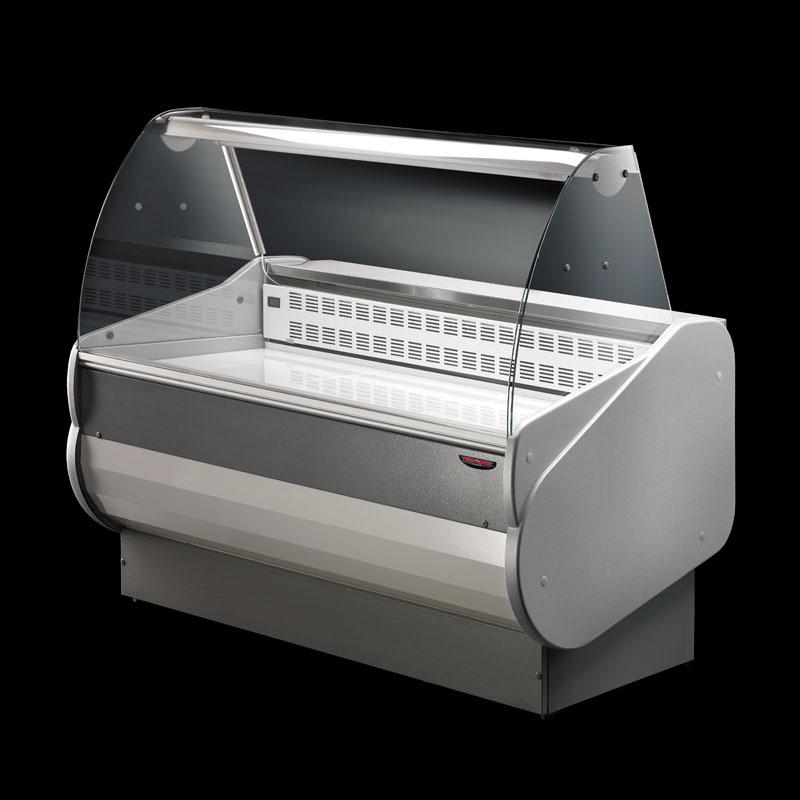

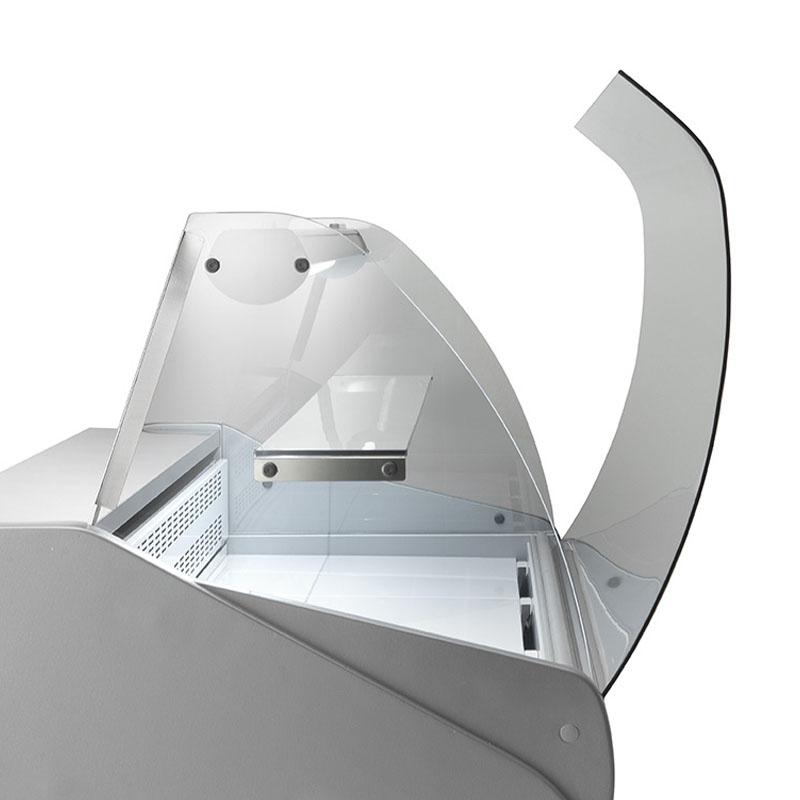

Curved tempered glasses (VC)

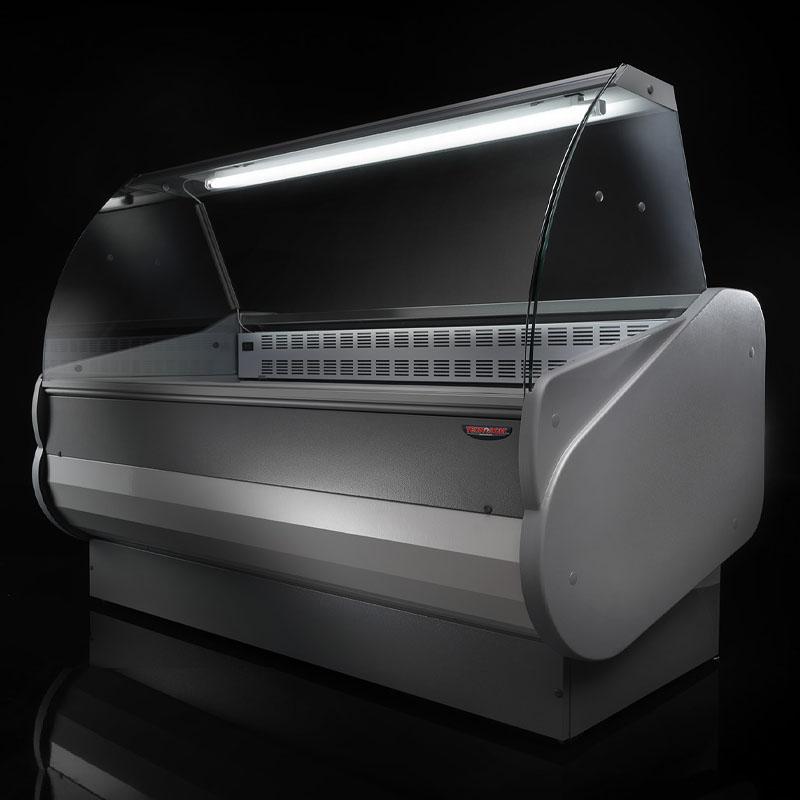

With curved tempered glass and painted sheet metal top (VCC)
Flat tempered glasses (VD)

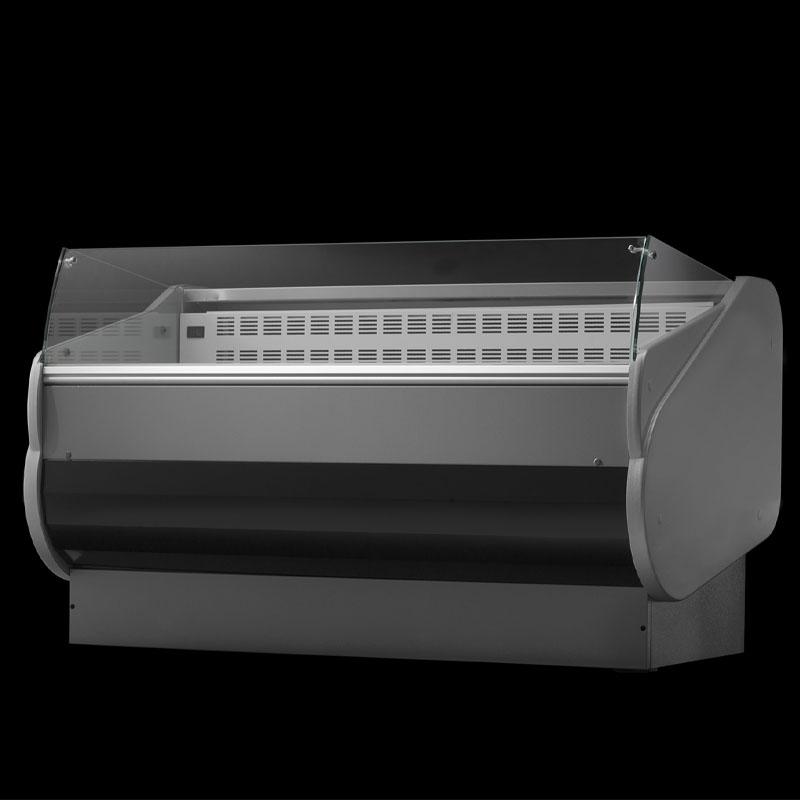

Libero servizio (Self)
Built-in group (CG)
Senza gruppo (SG)
Neutral (N)
Bread, hot plate, Bain-marie
R290

R290 (on request)


Available sizes
LENGHTS mm:
100
L 1040
150
L 1520
200
L 2000
250
L 2480
300
L 2960


DEPTH 900 mm
HEIGHT VC 1265 mm
HEIGHT VCC 1292 mm
HEIGHT VD 1250 mm
HEIGHT SELF 936 mm


Operating temperature
+ 2°C
+ 5°C
- Testing data: temperature + 25°C / relative humidity 60%

Standard RAL colours

FRONT PANEL

1018
3020
5013
6026
9005
1028
2008
5024
6019
9010



STANDARD SIDE WALLS
GREY

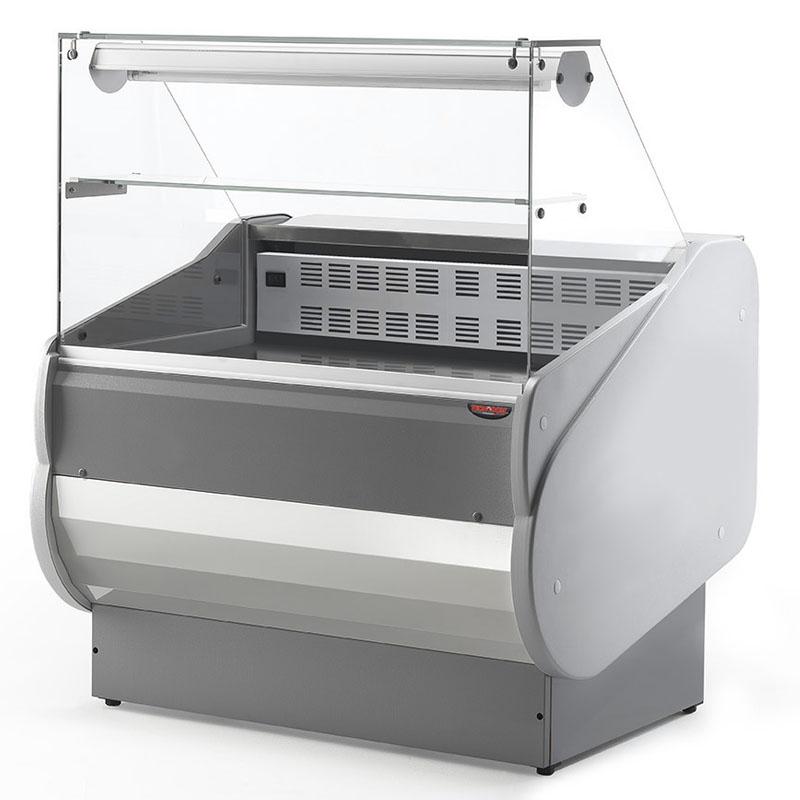

SALINA-80-VD0006tecnodom5666

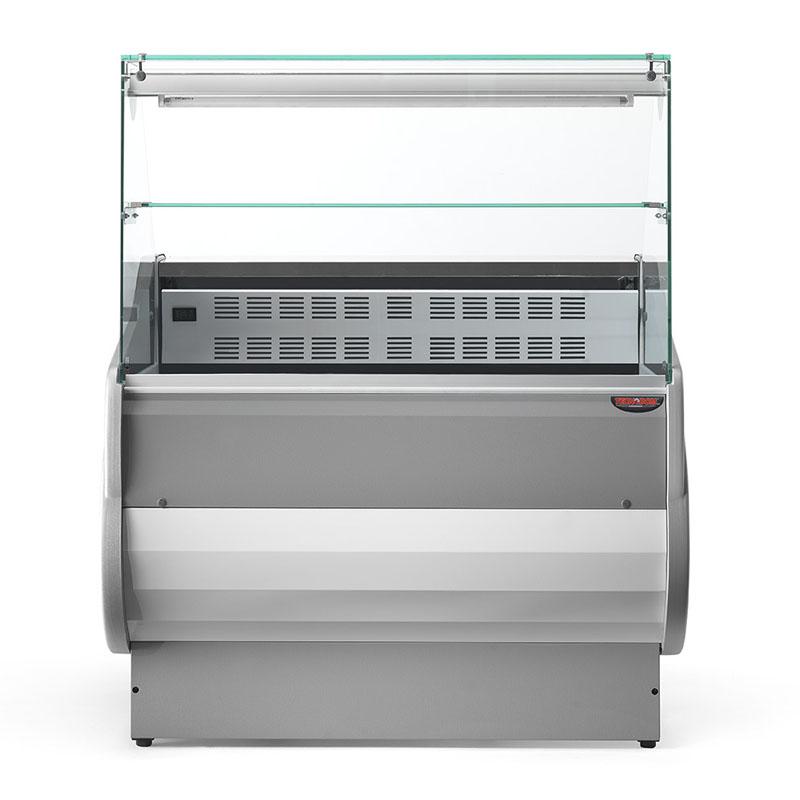

SALINA-80-VD0004tecnodom5660

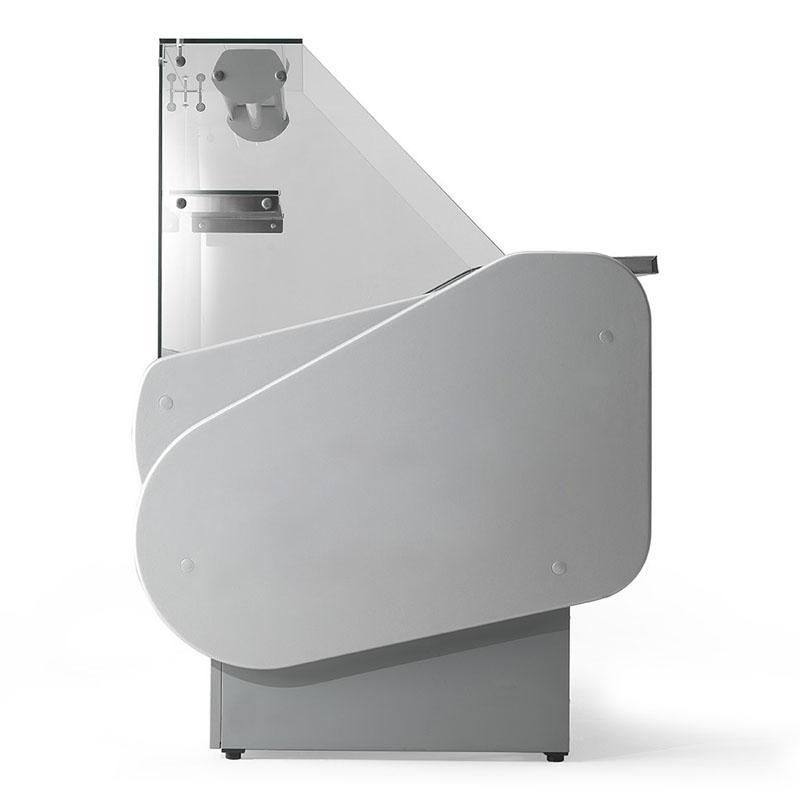

SALINA-80-VD0005tecnodom5662

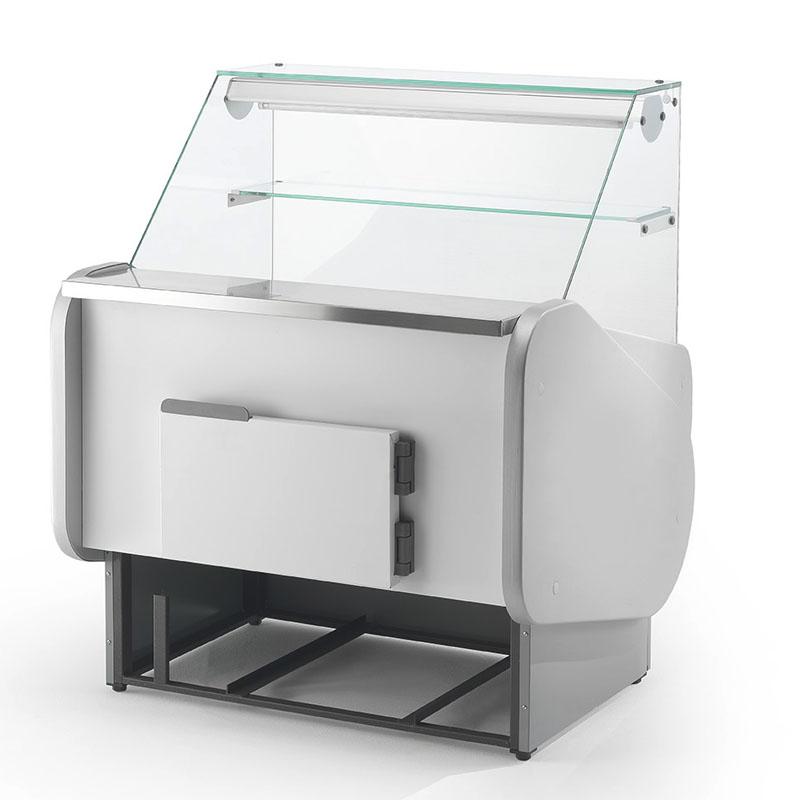

SALINA-80-VD0007tecnodom5674

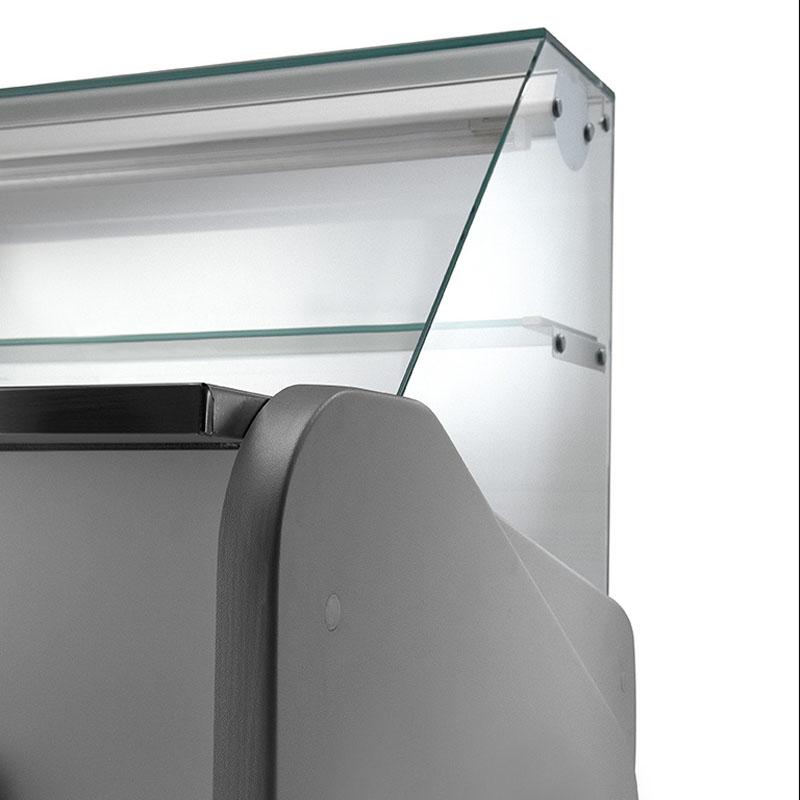

SALINA-80-VD0001D8C3269

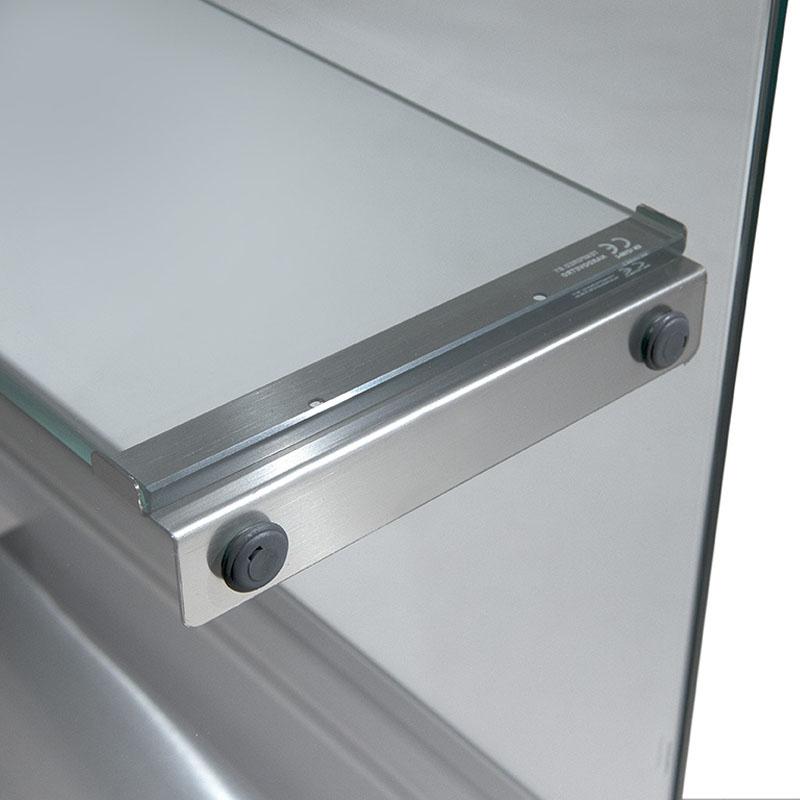

SALINA-80-VD0003D8C3286
SALINA-80-VD0002D8C3271

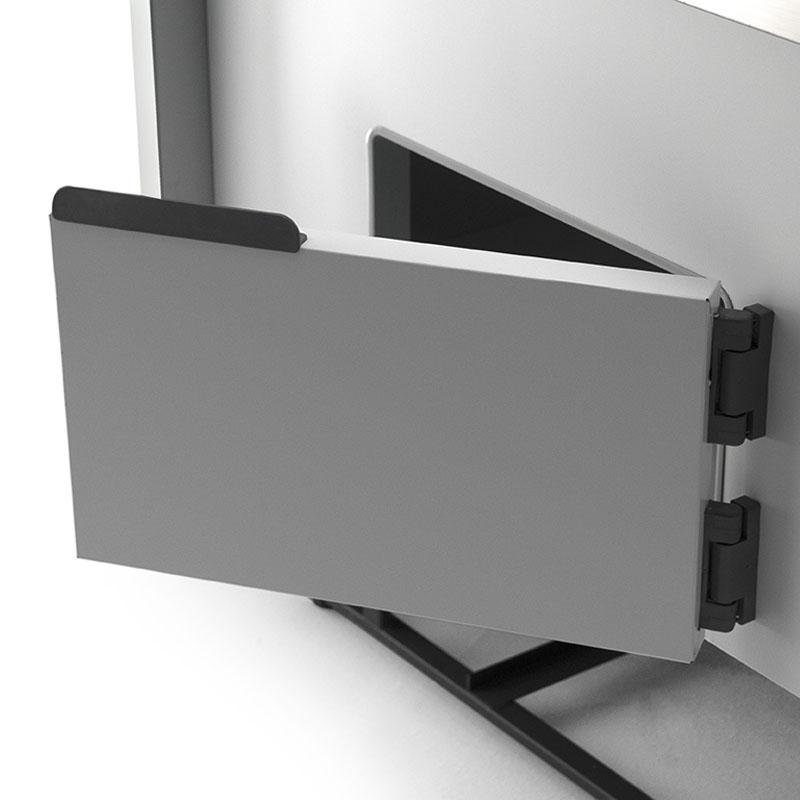

SALINA-80-VD0000D8C3264
