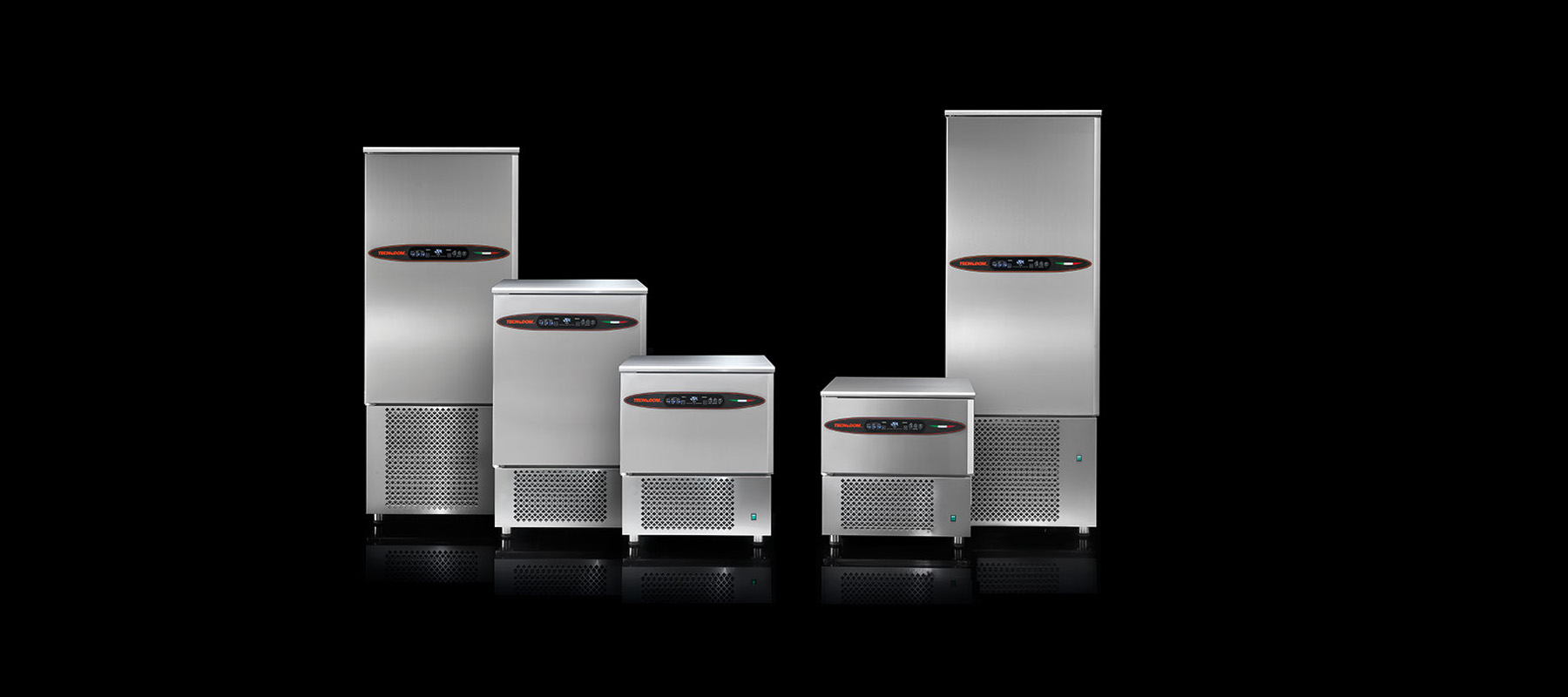

Abbattitore di temperatura ATTILA in acciaio inox da 3 a 20 teglie. Disponibili nelle versioni Touch e Digitale

Suitable for blast chilling

Gastronomy

Ice cream

Bakery

Fish

Energy card


Power, ease of use and reliability are the most importantfeatures

GENERAL FEATURES

  • Stainless steel interior and exterior, with the exception of the external base in galvanised steel;
  • Rounded internal corners;
  • High-pressure injected CFCs free polyurethane insulation;
  • Insulation thickness: 40 mm;
  • Self-closing door with hinges on the left and magnetic gasket;
  • Front panel with electronic control board;
  • Condensing unit with openable front grid for easy maintenace;
  • Electrical compartment on the right (front view), accessible for inspection;
  • Defrosting with open door, without the use of resistors or hot gas;
  • Removable plastic bottom tray for condensate water collection;
  • Cycles can be set with a core probe +3°C and -18°C. On request down to -40°C;
  • Kit of no. 4 adjustable stainless steel feet (height: 60/90 mm);
  • Suitable for both GN1/1 grids and 600x400 mm trays;
  • Easy and immediate installation.

Standard set-up

Chamber probe;
Core probe;
Universal stainless steel GN 1/1 guides - 600x400 mm;
Standard packaging: pallet + cardboard.



Typology of refrigeration
Ventilated (V)

Available versions
Acciaio inox
Digitale
Touch
Con gruppo incorporato (CG)
Predisposto per unità refrigerante remota (SG)
R290
* R290 (A richiesta)

Available sizes
LENGHTS 750 mm
DEPTH 750 mm
HEIGHT mm
ATT03
H. 770
ATT05
H. 890
ATT7
H. 1260
ATT10
H. 1260
ATT15
H. 1850
ATT20
H. 2080

Operating temperature
+ 3°C
- 18°C
- 40°C
- Testing data: temperature + 30°C / relative humidity 60%
