MR
80

Ampia linea di allestimenti con piano espositivo da 65 cm e riserva refrigerata.

Allestimenti disponibili

Bread

Hot plate

Bain marie

Cash counter

Suitable for

Meat

Pre-packed meat

Gastronomy

Dairy products

Cured meats

Snack

ESPOSITORI-REFRIGERATI-MR80-big
mr800002TecnodomMR8001
mr800000MR80FRONTALE
mr800003tecnodomMR80Estrema
mr800001MR80RETRO
mr800005TecnodomMR80LATO
mr800004TecnodomMR80LATO-APERTA
ESPOSITORI-REFRIGERATI-MR80-big
mr800002TecnodomMR8001
mr800000MR80FRONTALE
mr800003tecnodomMR80Estrema
mr800001MR80RETRO
mr800005TecnodomMR80LATO
mr800004TecnodomMR80LATO-APERTA

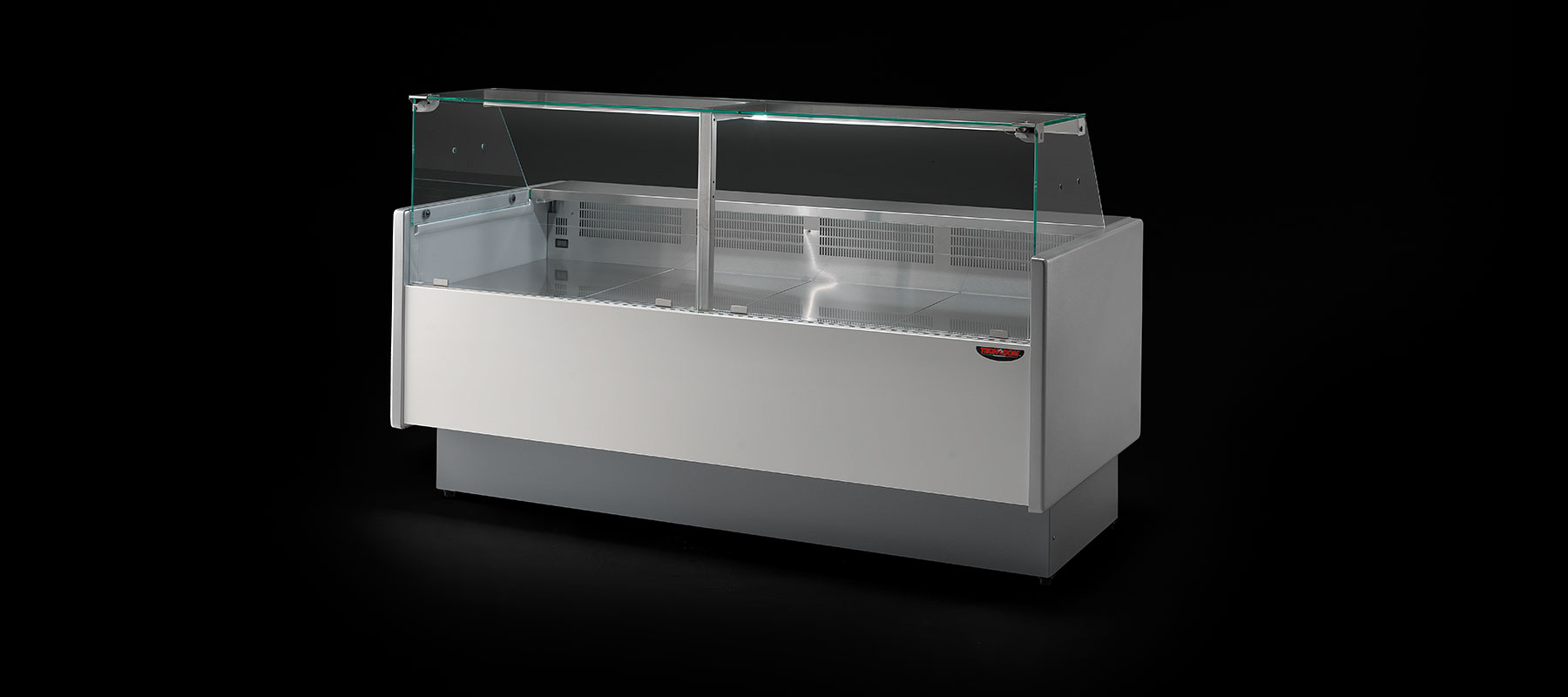

A wide display counter, suitable for any needs

GENERAL FEATURES

  • Technology, design and production “Made in Italy”;
  • Large exhibition area in stainless steel (895 mm depth);
  • Ideal for placement in any location;
  • Low energy consumption and low enviromental impact;
  • Extra clear quality glass;
  • Anti-fog glass system with hot air;
  • White prepainted sheet metal tank (suitable for food contact) with high-pressure injected CFCs-free polyurethane insulation (density 40 Kg / m³);
  • Multiplexable;
  • Easy installation, ready to use.



Standard set-up

Thermoformed and insulated side walls (thickness 40 mm);
Tempered side glass pre arranged for intermediate shelf;
Electronic control panel;
Refrigerated storage with doors;
Led ceiling light;
Stainless steel working top;
Display surface in stainless steel;
Automatic evaporating water tray with floating element (CG);
Off-cycle defrosting;
Baffle glass (only for refrigerated version);
Standard packaging: pallet + nylon.



Typology of refrigeration
Ventilated (V)

Available versions
Con vetri curvi temperati (VC);
Con vetri dritti temperati (VD);
Con vetri dritti temperati sollevabili con pistoni (VDP);
Libero servizio (VSELF);
Con gruppo incorporato (CG);
Senza gruppo (SG);
Neutro (N);
Pane, piastra calda, bagnomaria;
R290
R290 (A richiesta).

Available sizes
LENGHTS mm:
100
L 1040
125
L 1330
150
L 1520
187
L 1955
200
L 2000
250
L 2480
300
L 2960
375
L 3830


ANGLE

90°A
OPEN
90°C
CLOSE


DEPTH 895 mm
HEIGHT VC 1260 mm
HEIGHT VD 1200 mm
HEIGHT VDP 1200 mm
HEIGHT SELF 923 mm


Operating temperature
+ 2°C
+ 5°C
- Testing data: temperature + 25°C / relative humidity 60%

Standard RAL colours

FRONT PANEL

1018
3020
5013
6026
9005
1028
2008
5024
6019
9010



STANDARD SIDE WALLS
GREY
