Innovative design for product display.

Available equipments

Hot plate

Cash counter

Suitable for

Praline

Bakery

Perfect technology and design combination.

GENERAL FEATURES

  • Technology, design and production “Made in Italy”
  • Reduced dimensions (only 945 mm depth)
  • Ideal for placement in any location
  • Low energy consumption and low enviromental impact
  • Stainless steel working top and display surface
  • Easily removable stainless steel display trays for easy cleaning of the display case
  • Front and side finishes easily removable and customizable
  • Hot air anti-fog system
  • White prepainted sheet metal tank (suitable for food contact) with high-pressure injected CFCs-free polyurethane insulation (density 40 Kg / m³)
  • Multiplexable
  • Easy installation, ready to use

puntok-lat1
puntok-lat6
puntok-lat3
puntok-lat4
puntok-lat0
puntok-lat5
puntok-lat7
puntok-lat8
puntok-lat2
puntok-lat9

Standard set-up

Metal sheet side walls with tempered glass side panels.
Electronic control panel.
Led ceiling light.
No. 2 open compartments, complete with intermediate shelf.
The VD - 1M version includes 1 intermediate shelf in tempered glass, with LED lighting.
The VD - 2M version includes 2 intermediate shelves in tempered glass, with LED lighting.
Condensate evaporation tray with PTC resistance.
Standard packaging: pallet + nylon.



Typology of refrigeration
Ventilated (V)

Available versions
Flat tempered glass (VD)
Flat tempered glass + 1 intermediate shelf in tempered glass (VD-1M)
Flat tempered glass + 2 intermediate shelf in tempered glass (VD-2M)
Built-in unit (CG)
Without condensing unit (SG)
Neutral (N)

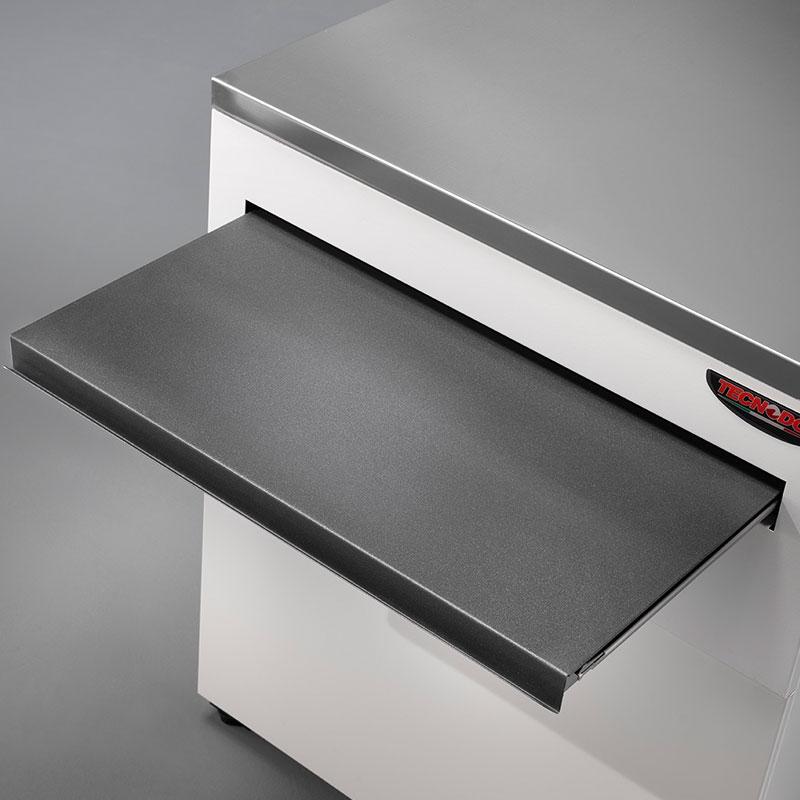

Hot plate

Available sizes
LENGHTS mm
3V
L 1377
3 Vassoi
4V
L 1802
4 Vassoi
5V
L 2227
5 Vassoi


ANGLE

90°A
OPEN
90°C
CLOSE


TRAY DEPTH mm

650


DEPTH 940 mm
HEIGHT VD 1064 mm
HEIGHT VD-1M 1224 mm
HEIGHT VD-2M 1384 mm


Operating temperature
+ 2°C
+ 6°C


- Testing data: temperature + 25°C / relative humidity 60%

Standard RAL colours

FRONT PANEL

1018
3020
5013
6026
9005
1028
2008
5024
6019
9010
