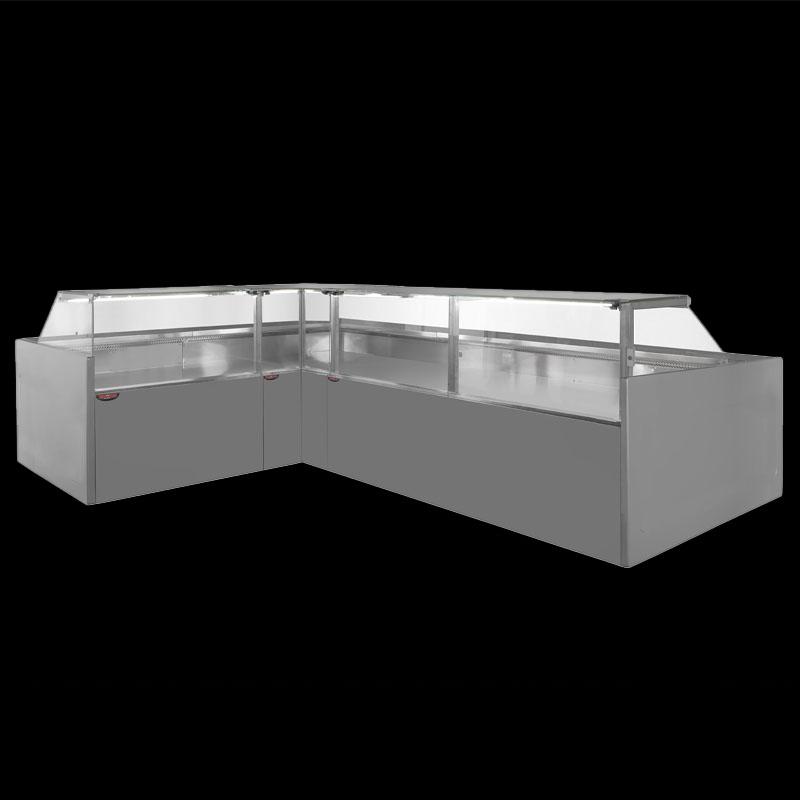

Wide set-ups line with customizable fronts in 2 different heights.

Available equipments

Bread

Hot plate

Bain marie

Cash counter

Suitable for

Meat

Pre-packed meat

Gastronomy

Dairy products

Cured meats

Snack

Power, capacity and practicality are the strengths.

GENERAL FEATURES

  • Technology, design and production “Made in Italy”
  • Large exposition area (1150 mm depth)
  • Suitable for large distribution
  • Low energy consumption and low enviromental impact
  • Extra clear quality glass
  • Anti-fog glass system with hot air
  • Without refrigerated storage
  • White prepainted sheet metal tank (suitable for food contact) with high-pressure injected CFCs-free polyurethane insulation (density 40 Kg / m³)
  • Multiplexable
  • Easy installation, ready to use

Standard set-up

Thermoformed and insulated side walls high (A) or low (B) (40 mm thick each).
Tempered side glass pre arranged for intermediate shelf.
Electronic control panel.
Led ceiling light.
Stainless steel working top.
Stainless steel display surface with liquids recovery system.
Automatic evaporating water tray.
Electric defrosting for CG and SG version (built-in unit and without condensing unit).
Baffle glass (only for refrigerated version).
Standard packaging: pallet + nylon.



Typology of refrigeration
Ventilated (V)

Available versions
Tempered glasses (VC)
Flat tempered glasses (VD)
With straight tempered glasses that can be lifted with pistons (VDP)
With high front (A) and high insulated sides (thickness 40 mm), with low front (B) and low insulated sides (thickness 40 mm)
With built-in group (CG)
Without group (SG)
Neutral (N)
bread, hot plate, brine-marie
R290
R290 (Upon request)

{langck=it-IT}Disponibile nelle misureAvailable sizes
LENGHTS mm:
100
L 1040
125
L 1330
150
L 1520
187
L 1955
200
L 2000
250
L 2480
300
L 2946
375
L 3830


ANGLE

90°A
OPEN
90°C
CLOSE


DEPTH 1150 mm
HEIGHT VC 1232 mm
HEIGHT VD 1127 mm
HEIGHT VDP 1200 mm


Operating temperature
+ 2°C
+ 5°C
- Testing data: temperature + 25°C / relative humidity 60%

Standard RAL colours

FRONT PANEL

1018
3020
5013
6026
9005
1028
2008
5024
6019
9010



STANDARD SIDE WALLS
GREY
