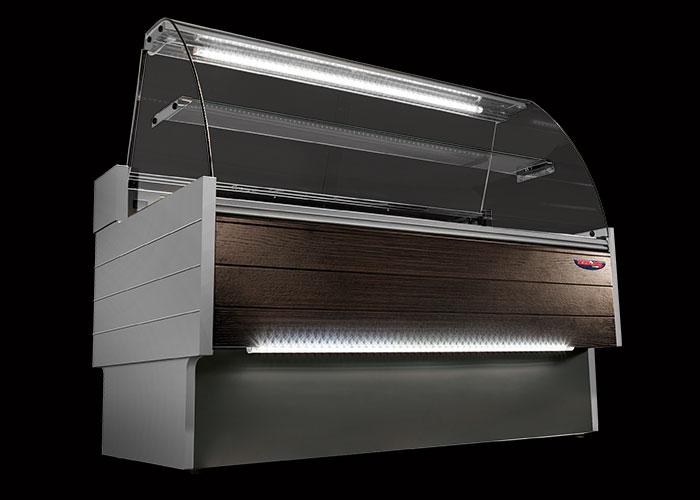

Capitivating aesthetics with wood-effect fronts.

Available equipments

Bread

Hot plate

Bain marie

Cash counter

Suitable for

Brioches

Gastronomy

Dairy products

Cured meats

Snack

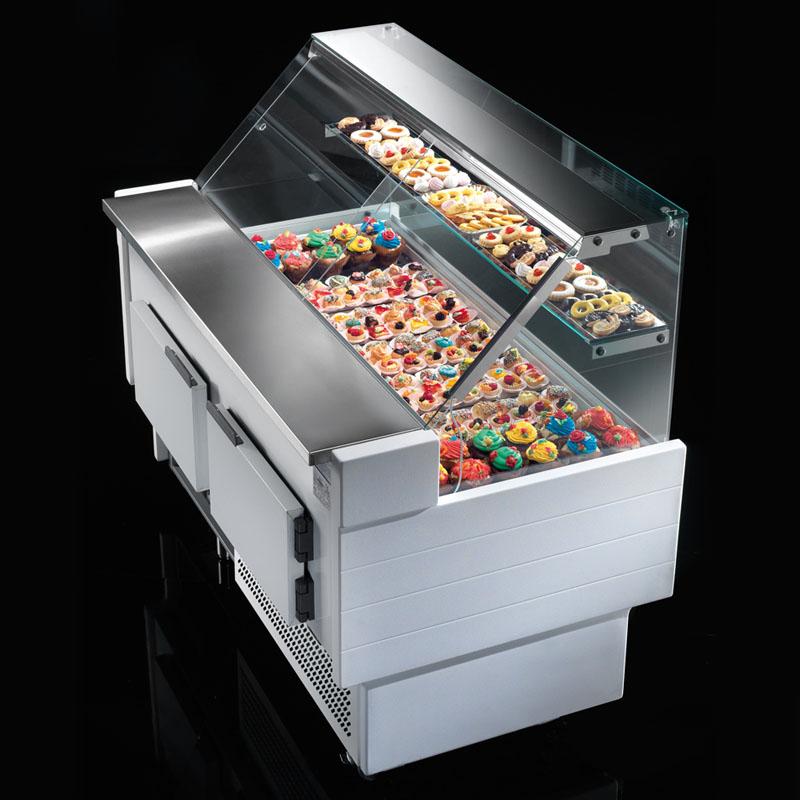

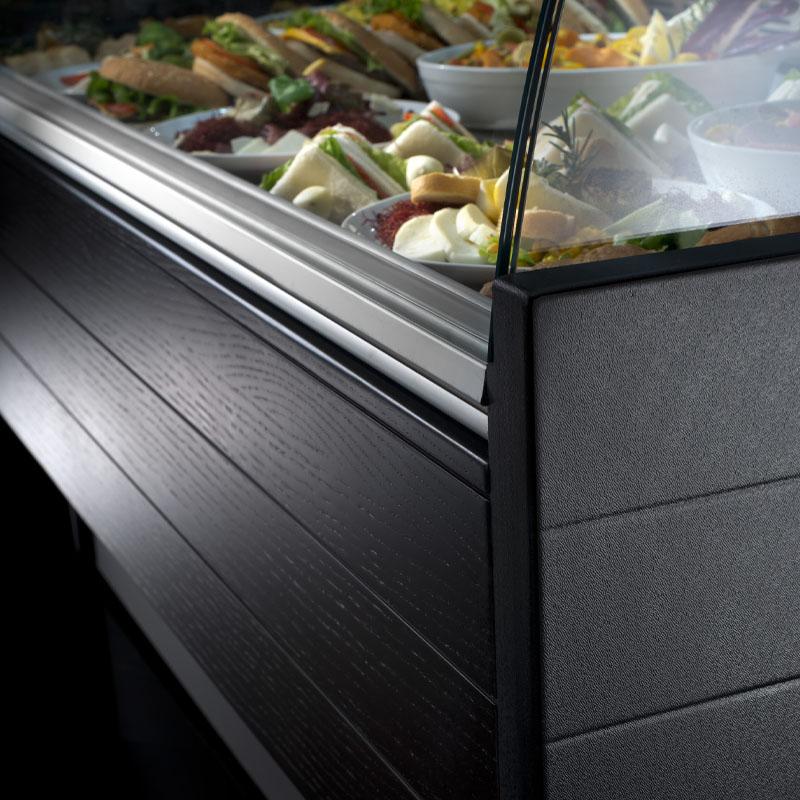

Eye catching aesthetics, large exhibition spaces.

GENERAL FEATURES

  • Technology, design and production “Made in Italy”
  • Reduced dimensions (only 900 mm depth)
  • Ideal for placement in any location
  • Low energy consumption and low enviromental impact
  • White prepainted sheet metal tank (suitable for food contact) with high-pressure injected CFCs-free polyurethane insulation (density 40 Kg / m³)
  • Not multiplexable
  • Easy installation, ready to use

Standard set-up

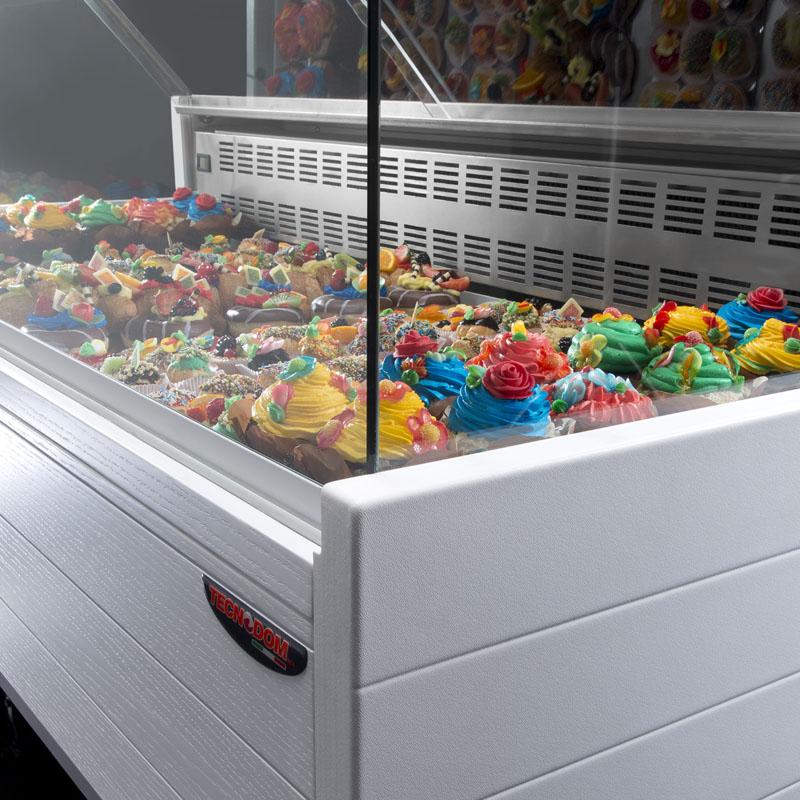

Thermoformed and insulated side walls (thickness 50 mm).

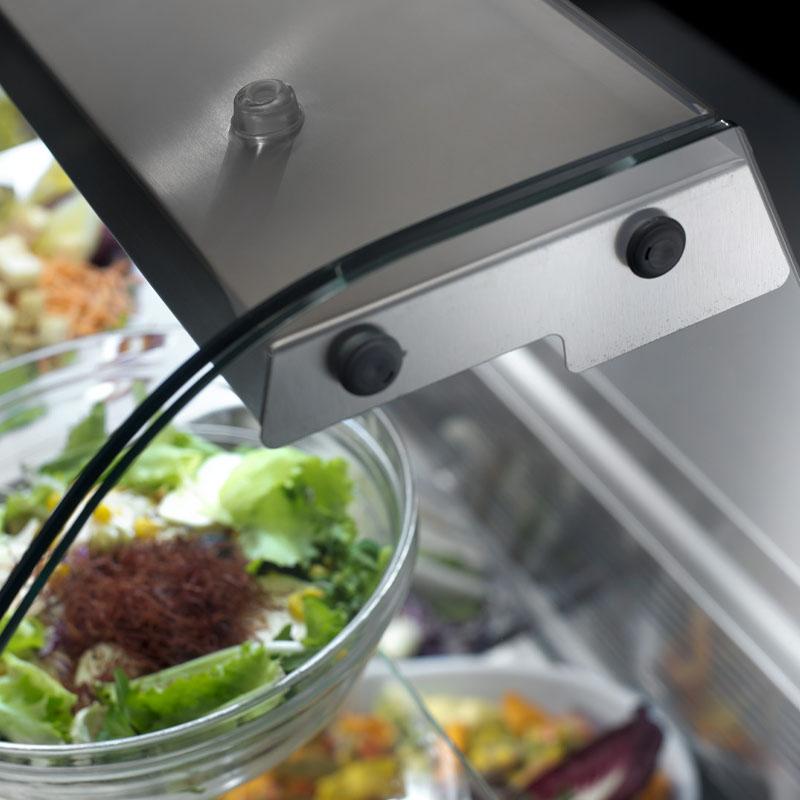

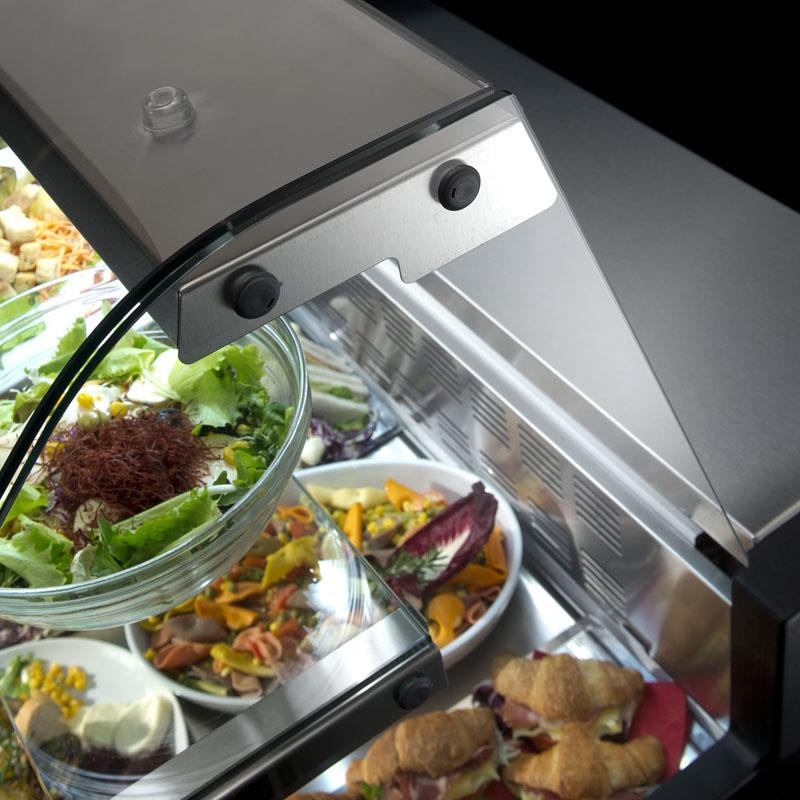

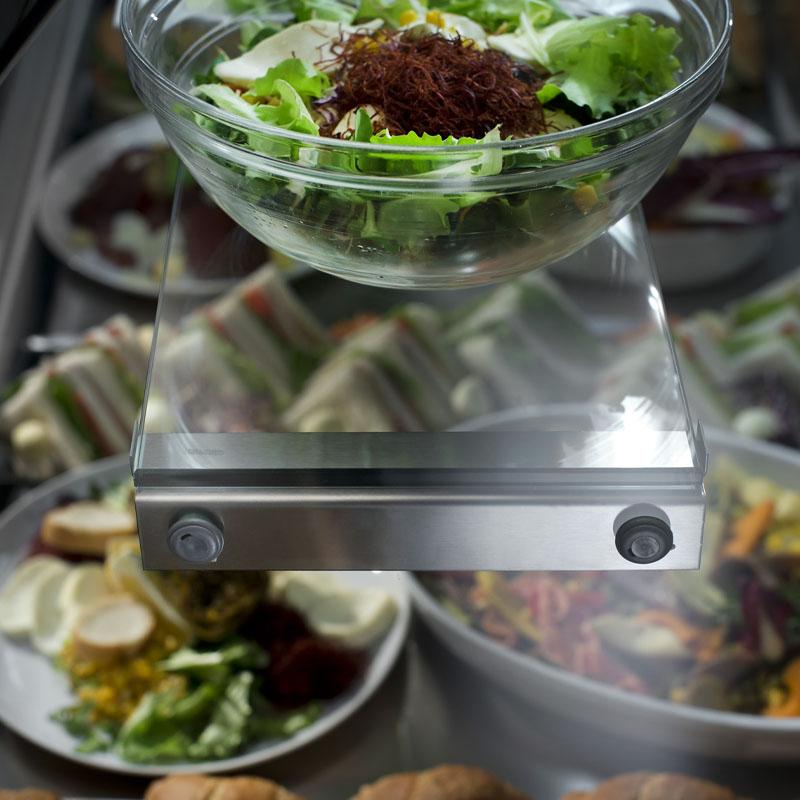

Tempered side glass pre-arranged for intermediate shelf.

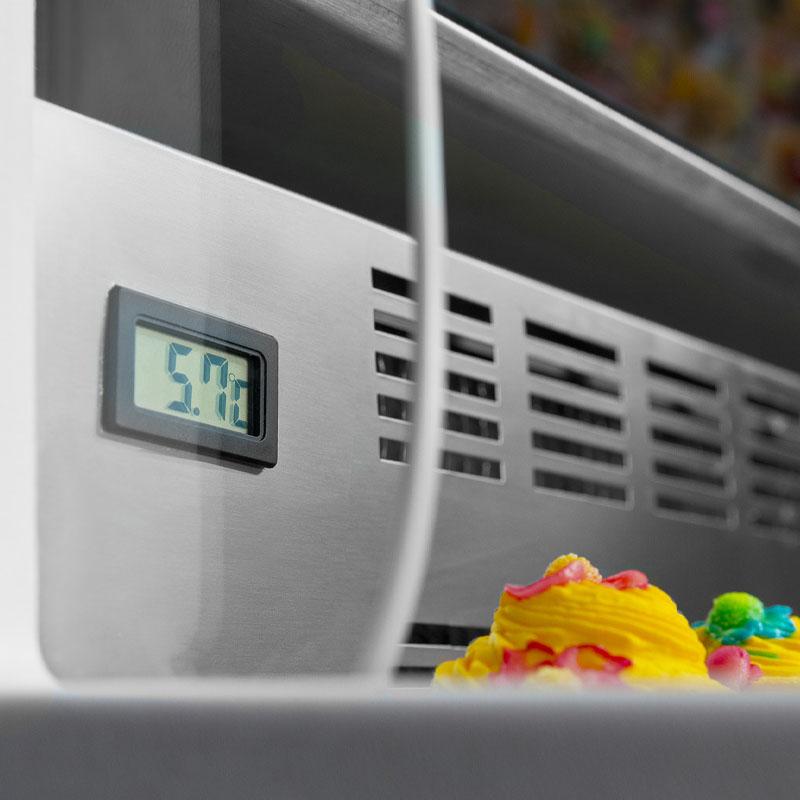

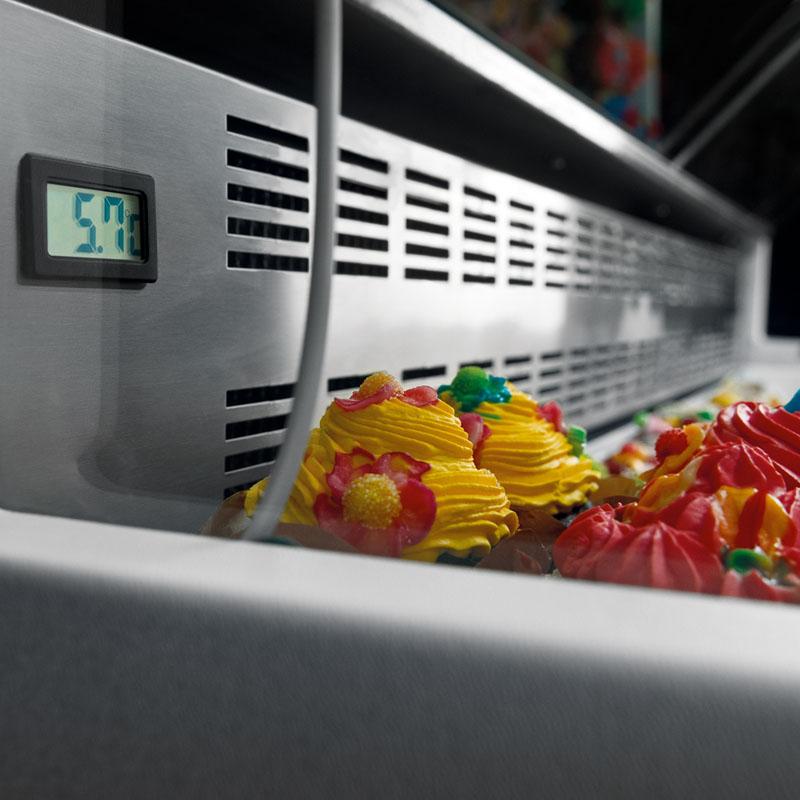

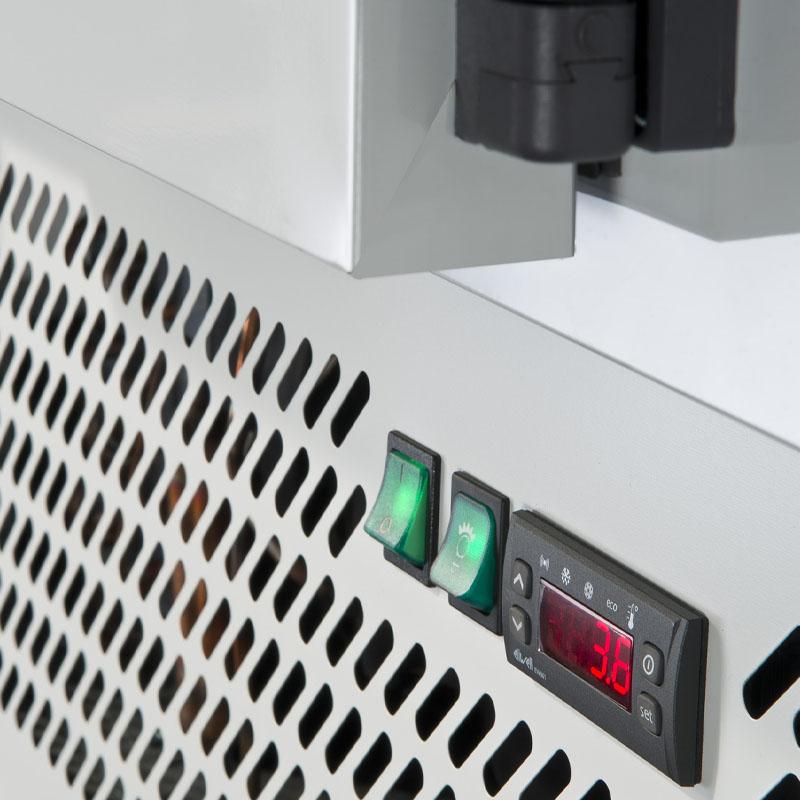

Electronic control panel.

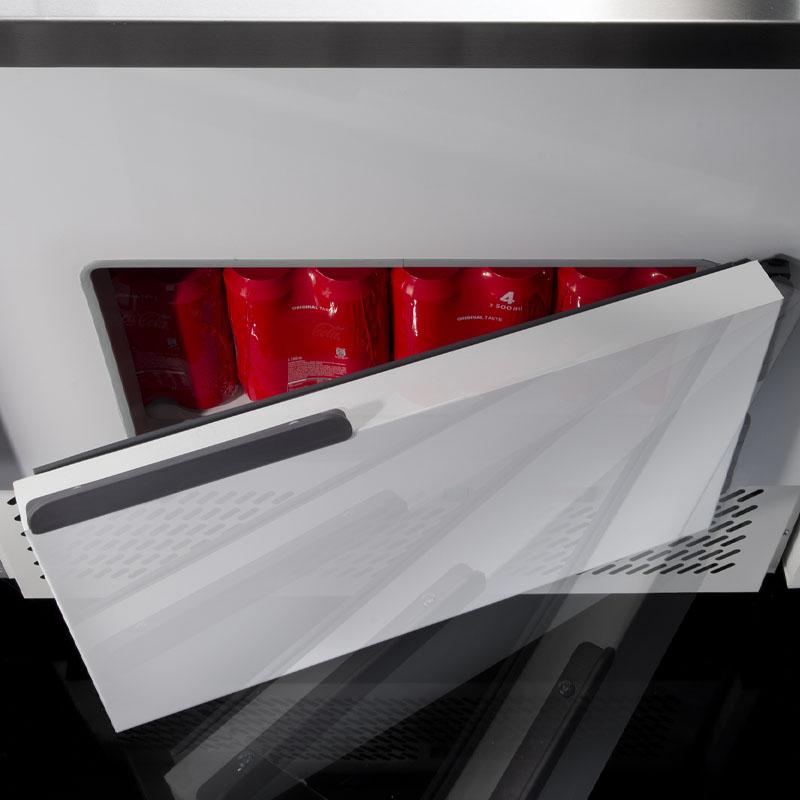

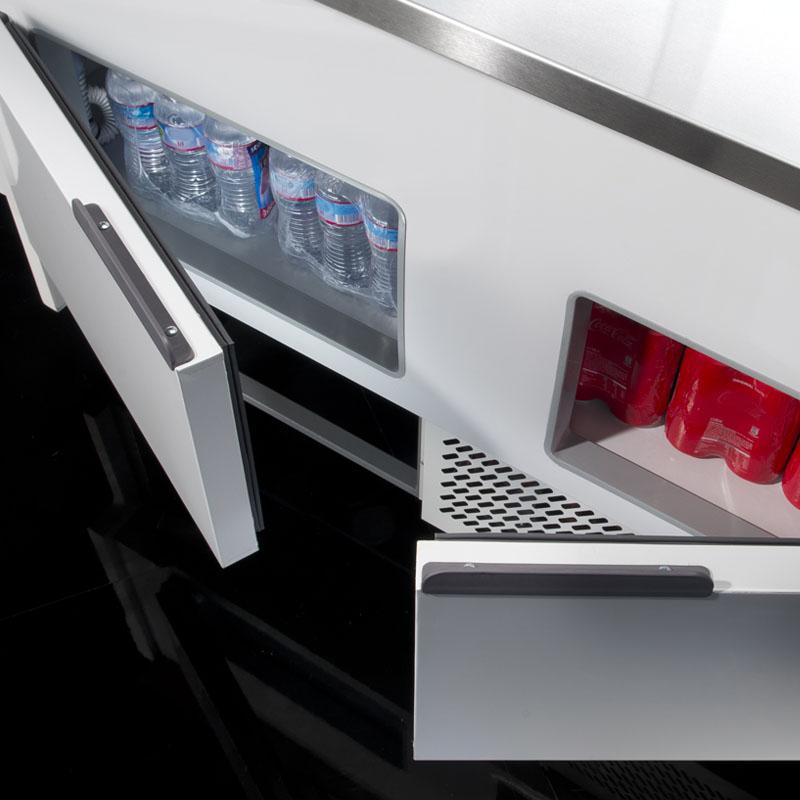

Refrigerated storage with doors.

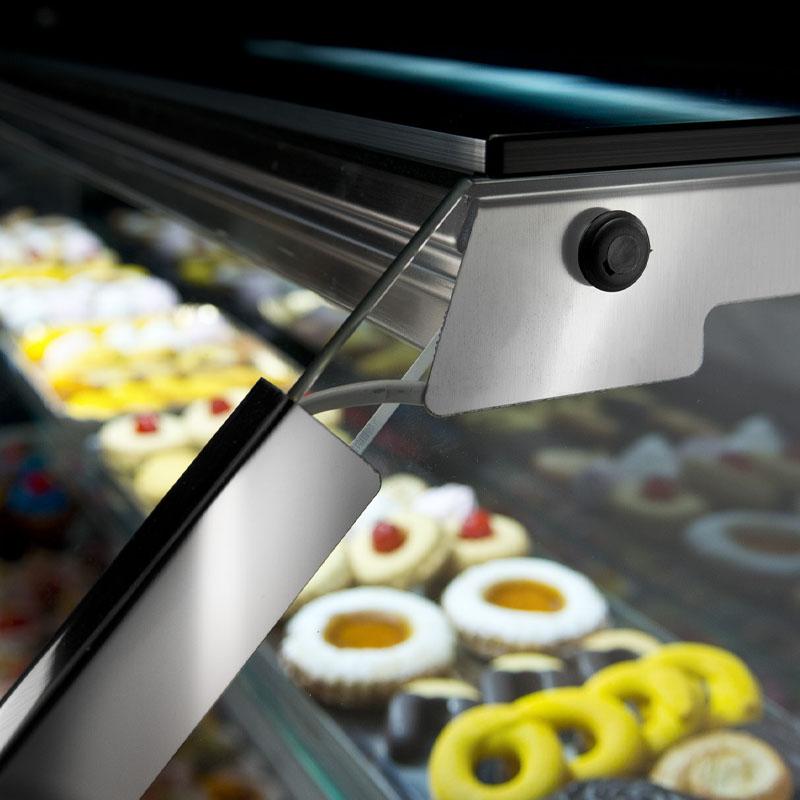

Led ceiling light.
Stainless steel working top.
Stainless steel display surface.
Manual, removable condensate evaporation tray.
Anti-fog system with electrical resistance.
Off-cycle defrosting.
Standard packaging: pallet + nylon.



Typology of refrigeration
Semi-ventilated (SV)

Available versions

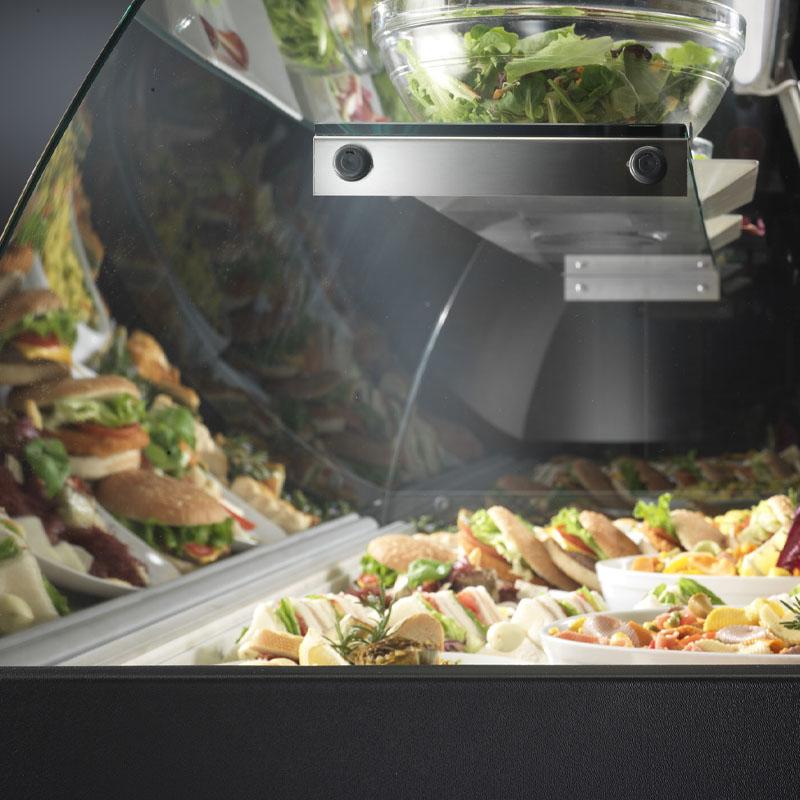

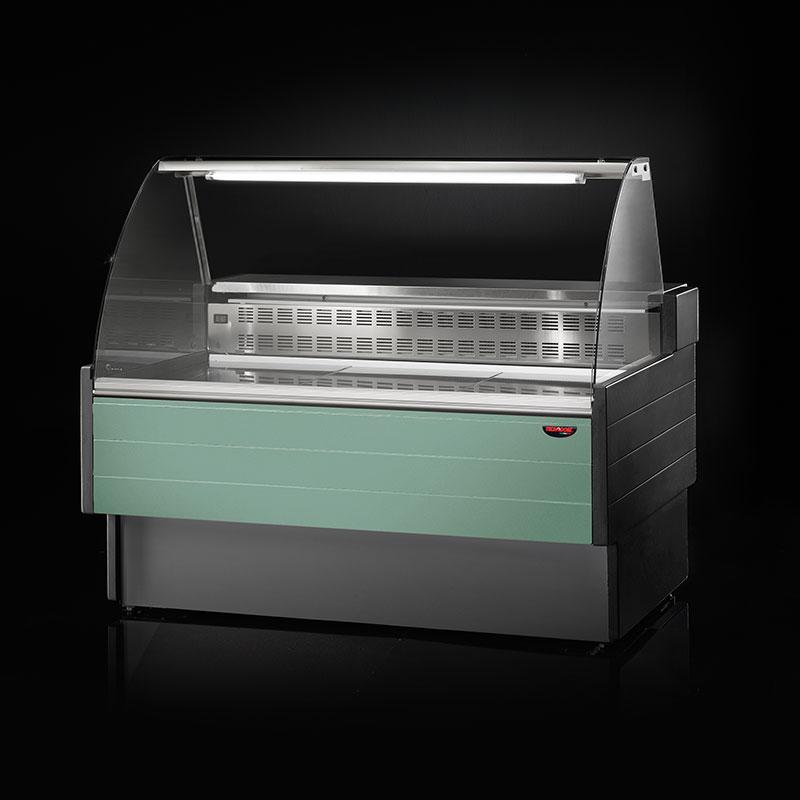

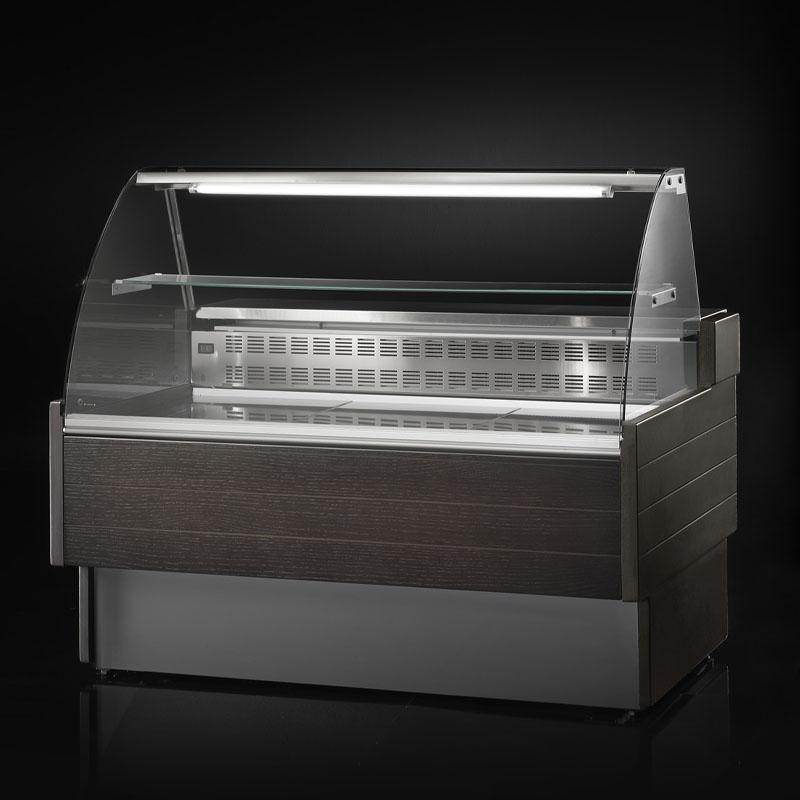

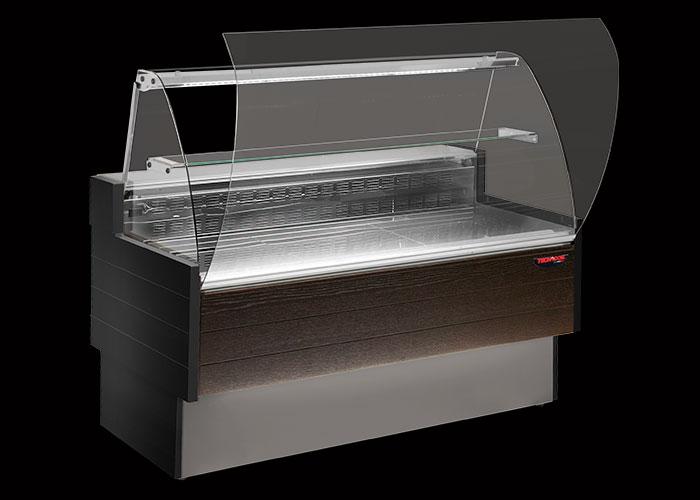

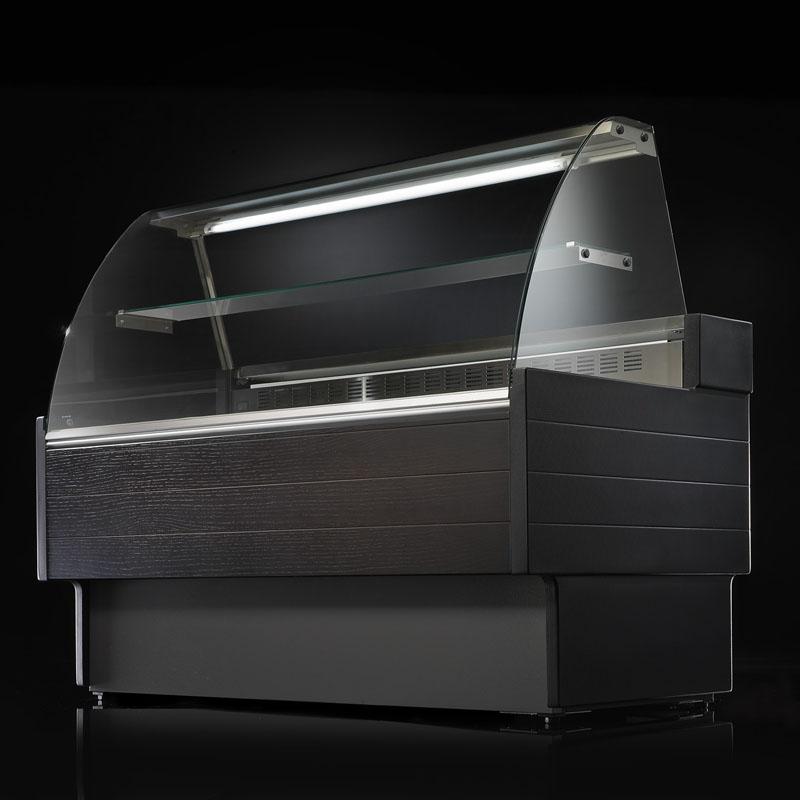

Curved tempered glasses (VC)

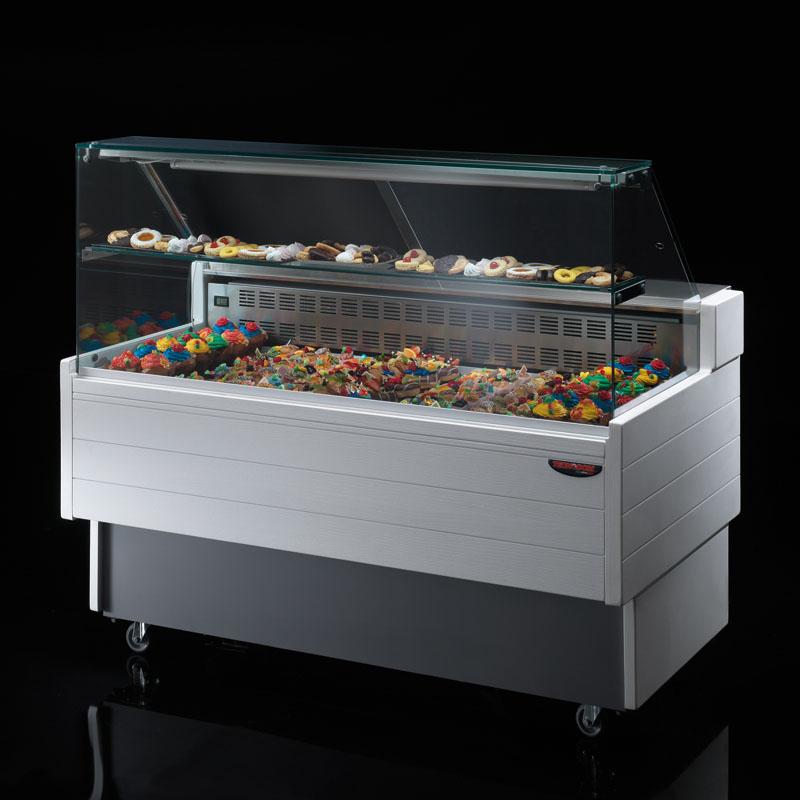

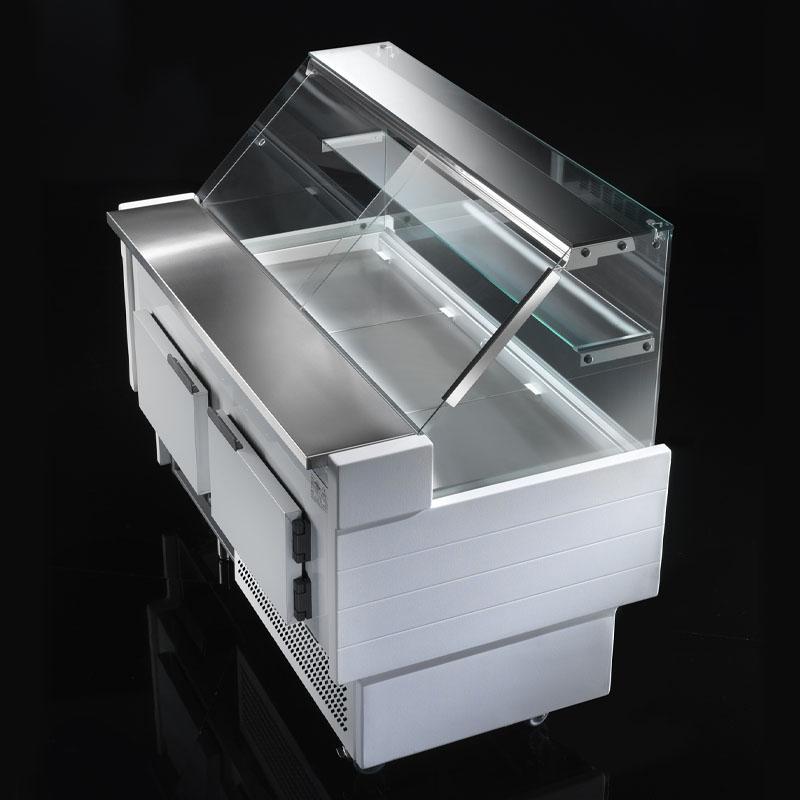

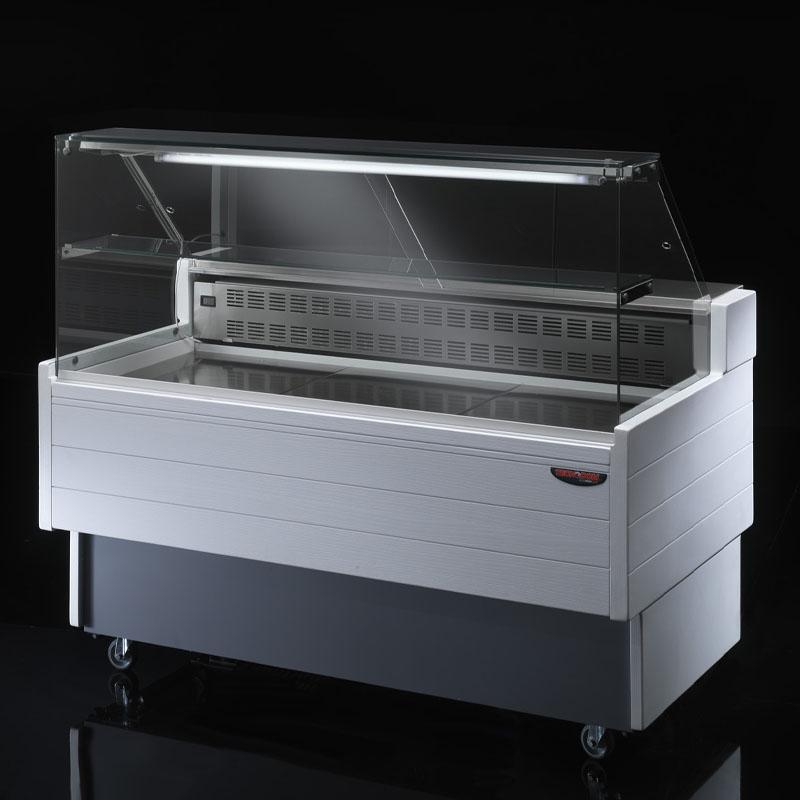

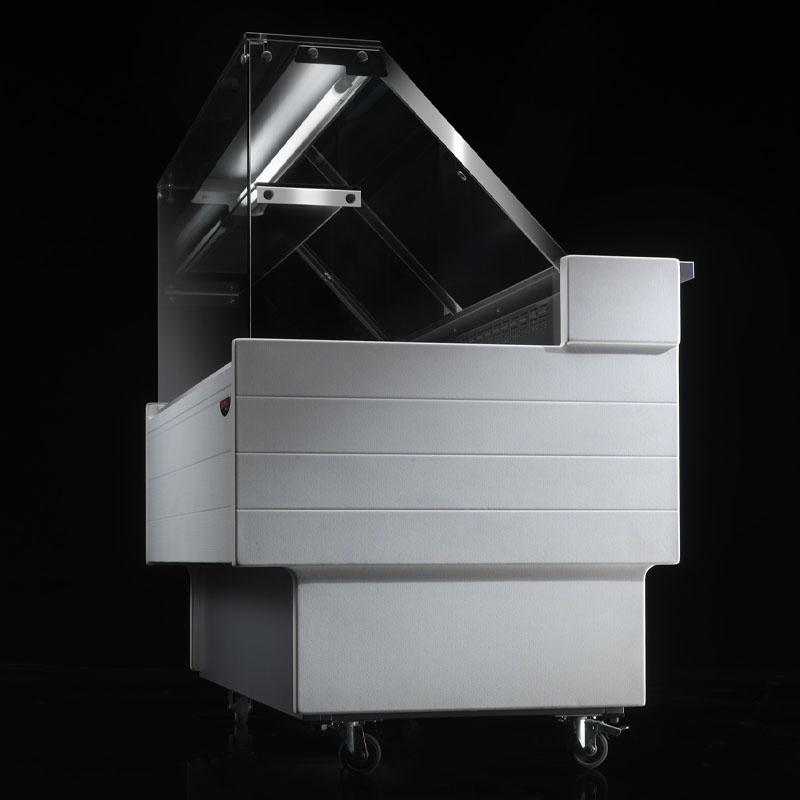

Flat tempered glasses(VD)
With built-in group (CG)
Without (SG)
Neutral (N)
Bread, hot plate, baine-marie
R290

R290 (on request)


Available sizes
LENGHTS mm:
100
L 1060
150
L 1540
200
L 2020
250
L 2500
300
L 2980


DEPTH 890 mm
HEIGHT VC 1265 mm
HEIGHT VD 1245 mm


Operating temperature
+ 3°C
+ 5°C
- Testing data: temperature + 25°C / relative humidity 60%

Standard RAL colours

FRONT PANEL

1018
3020
5013
6026
9005
1028
2008
5024
6019
9010



STANDARD SIDE WALLS
BLACK
WHITE
